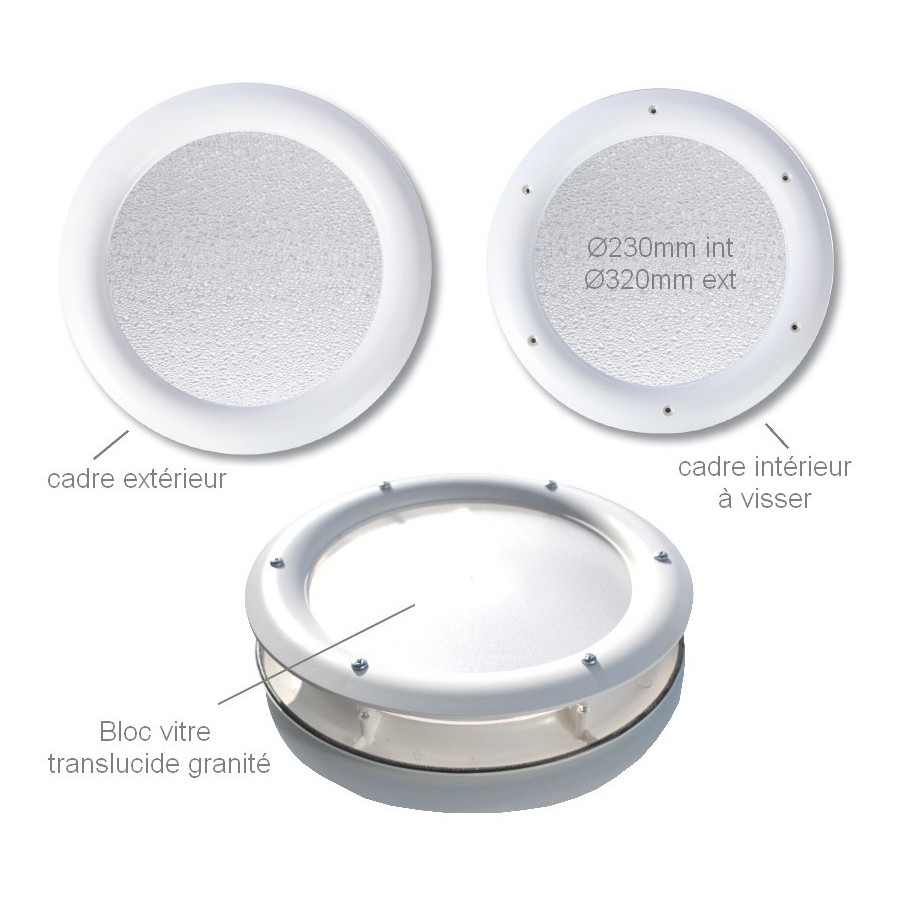

1 white PVC round frame outside
2 translucent plexi-granite shells for the glass block
1 white PVC round frame outside
6 screws 5x50 (for 40 mm insulation)
6 screws 5x30 (for 20 mm insulation)
1m foam gasket (for 20 mm insulation)

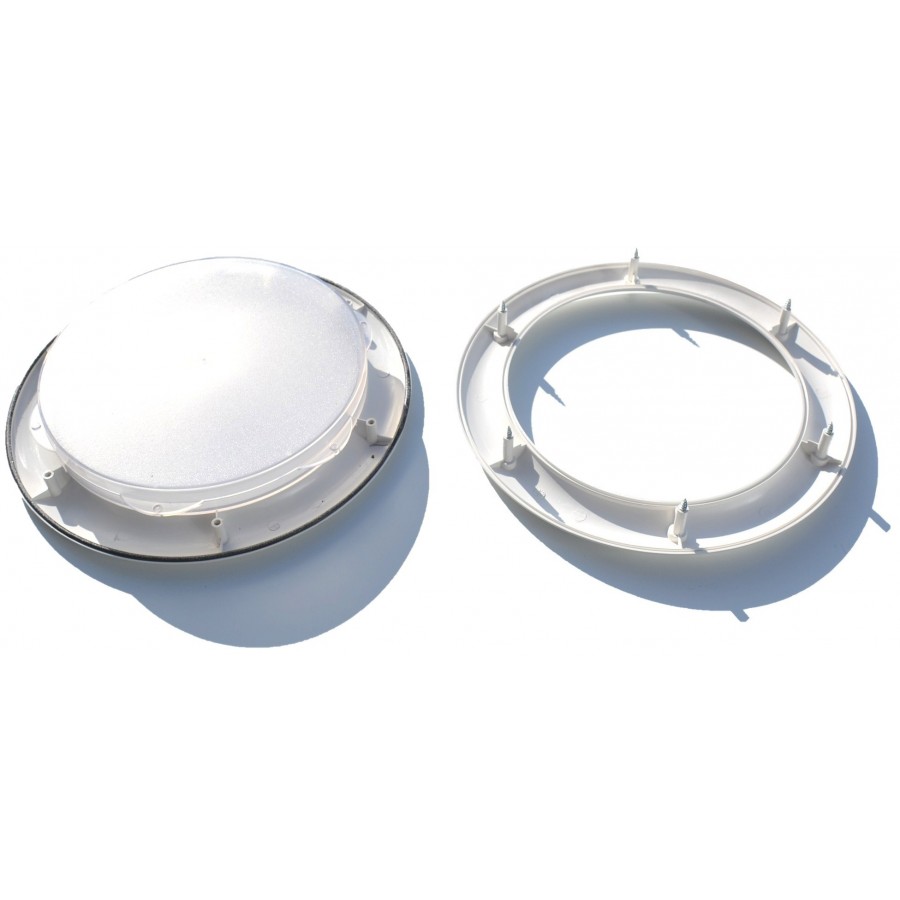

After creating the cut-out in the panel (a circle of Ø290mm), the 2 frames are fitted and screwed together.

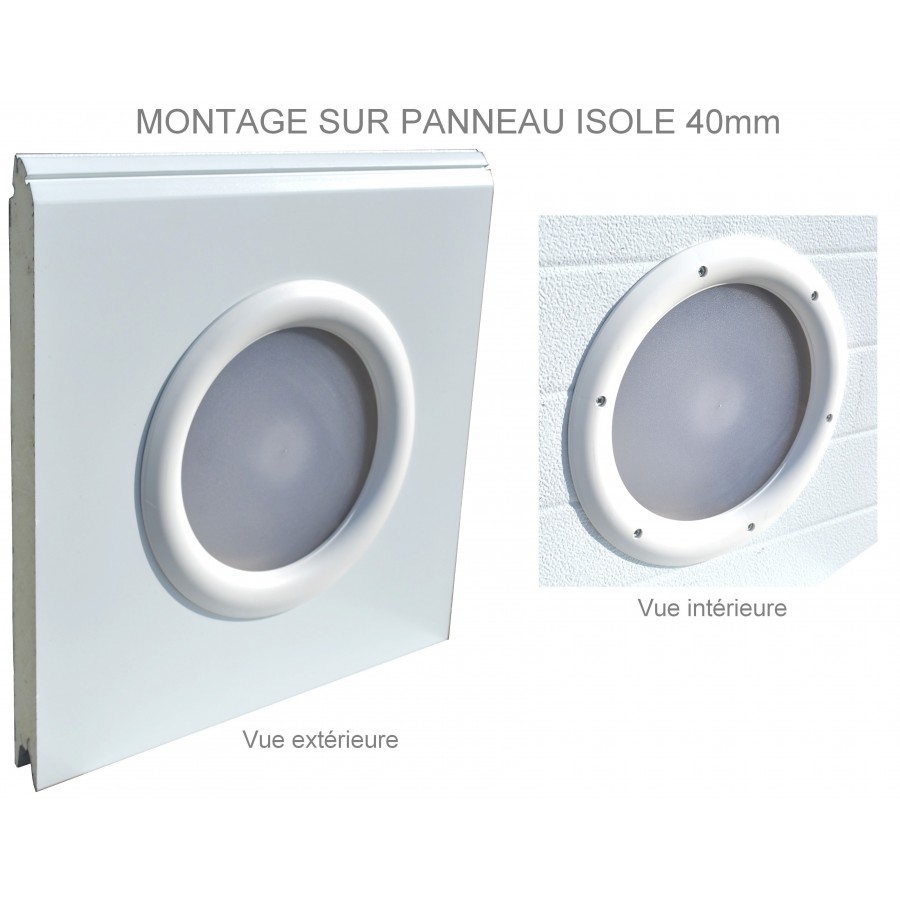

The set is designed for 40mm panel.

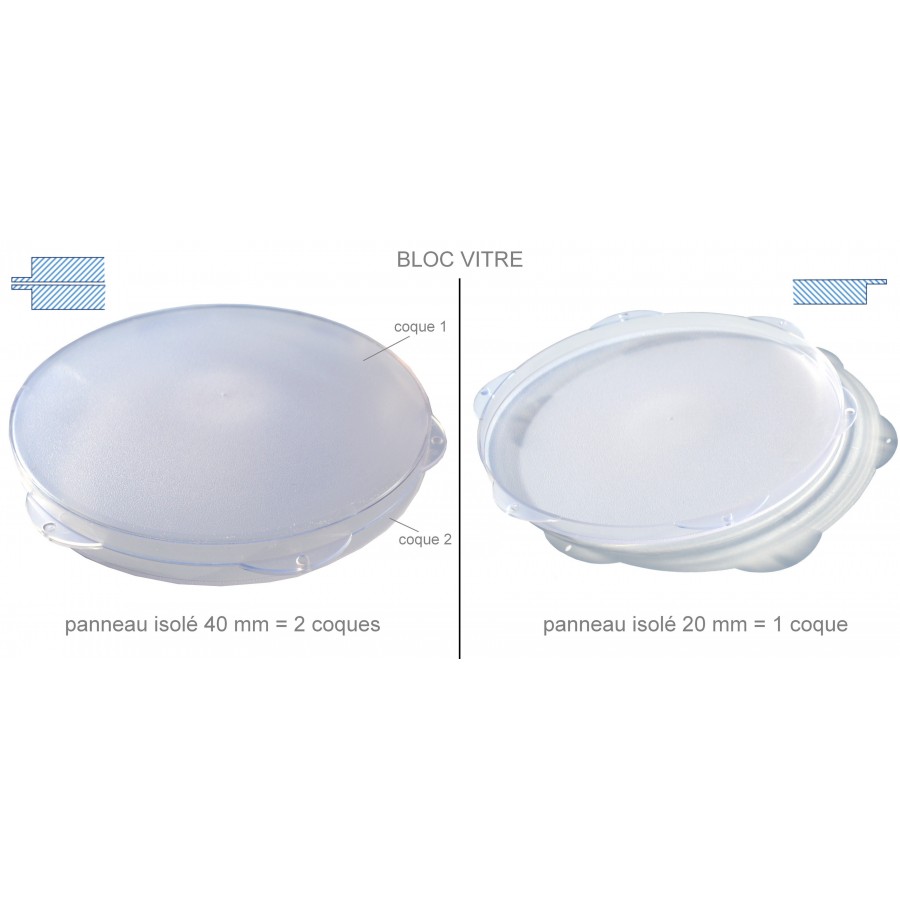

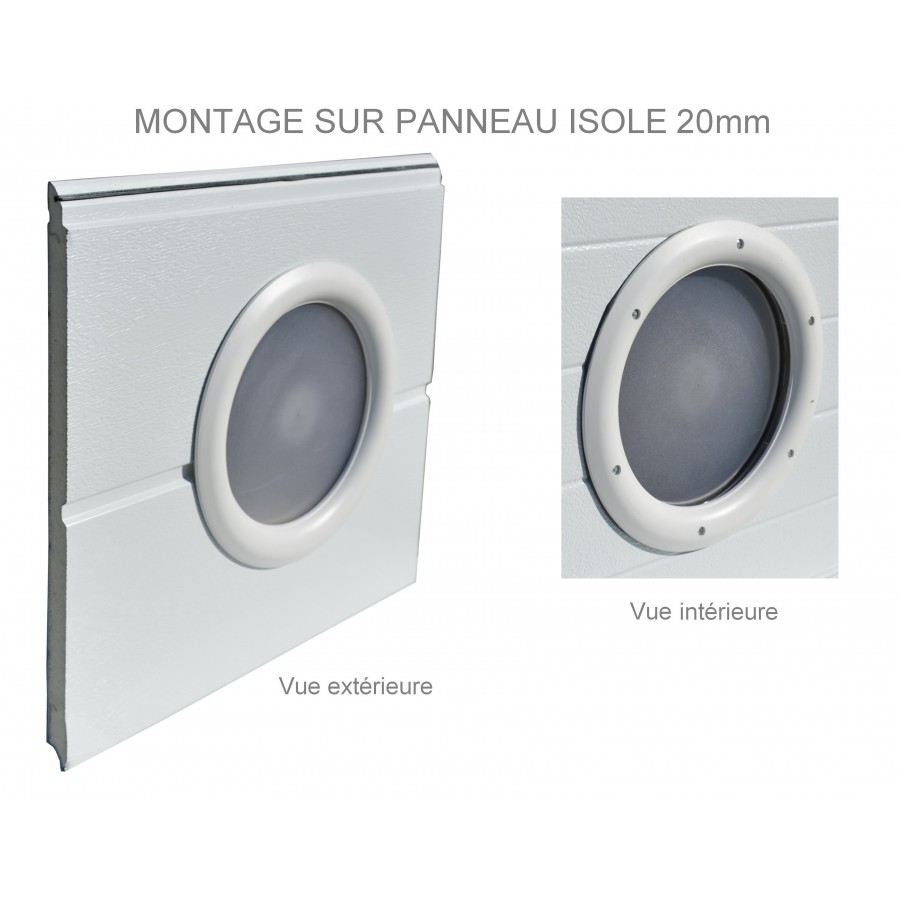

For a 20mm panel, use only one shell for the glass block, and glue the foam gasket on the inside.
Caution, when screwing in, tighten moderately.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
5 |
|---|---|---|
| 4 |
|
0 |
| 3 |
|
0 |
| 2 |
|
1 |
| 1 |
|
0 |
Hublot rond
Bel aspect ,pose relativement facile mais même avec un serrage manuel modéré le support d'une des vis de fixation a cassé! pas cool ça mériterais d'être renforcé!
Hublot
Hublot de qualité. Pose facile. Très beau rendu.
Hublot rond PVC
Très bien, emballage bien fait et le Hublot en PVC très bien bonne qualité facile à poser merci.
Hublot rond
Bien emballé, délais très court, bon produit A recommander!
bel hublot
pour remplacer un hublot défraîchi , il est très joli , il manquait des vis qui m'on été livrée très rapidement , le résultat est superbe .
Rectangular Porthole New Garona (Complete Kit) - 59,90 €
New Garona rectangular porthole for garage door.
Inner frame PVC white 490x325 + 10 screws 5x40
Outer frame colour PVC 530x365
4 types of glazing: clear plexi, granite or safety clear glazing or granite
Installation template included : Easy to install, one jigsaw cut and screwed together from the inside
Available in 3 colours:
- White RAL 9016 - Anthracite Grey RAL 7016 - Golden Oak RAL 8003
Porthole Alunox (different models) - 119,40 €
Porthole for insulated garage door 40mm or 60mm Outer frame in alumox (with chamfer)
Inner frame in ACP (or PVC for Round model)
Polycarbonate glazing: flush smoked exterior & opal interior
Fixing with screws from the inside (screws supplied M4x35 and M4x55 to adapt to the panel thickness)
Metal jigsaw blade - 9,90 €
Jigsaw blade suitable for cutting insulated garage door panels from 20 to 60mm
Designed for cutting our door panels with 2 steel faces and polyurethane foam insulation.
Blade length: 132mm Thickness :1.2mm
