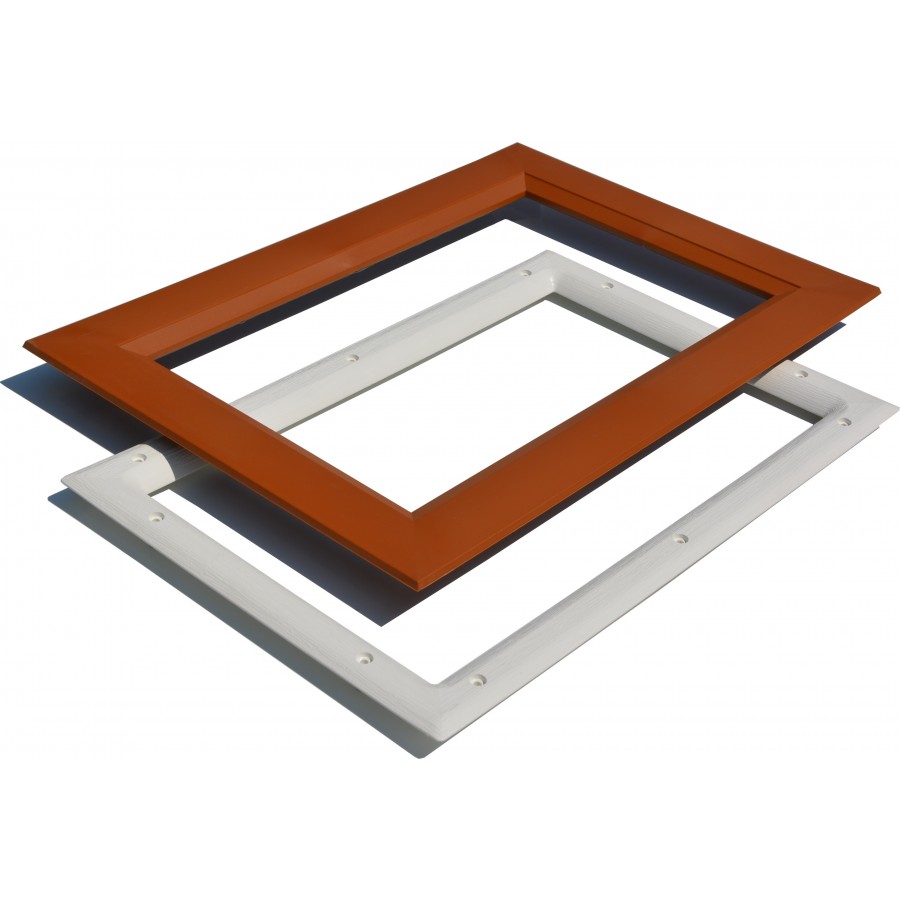

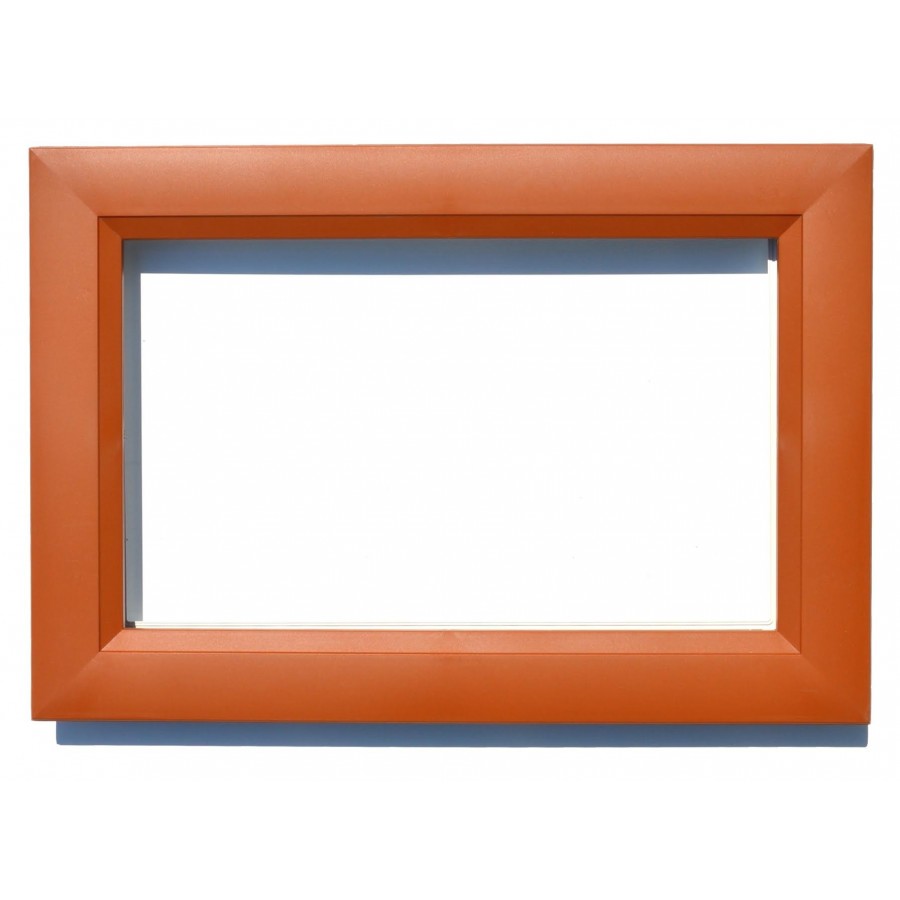

New Garona rectangular porthole for garage door.

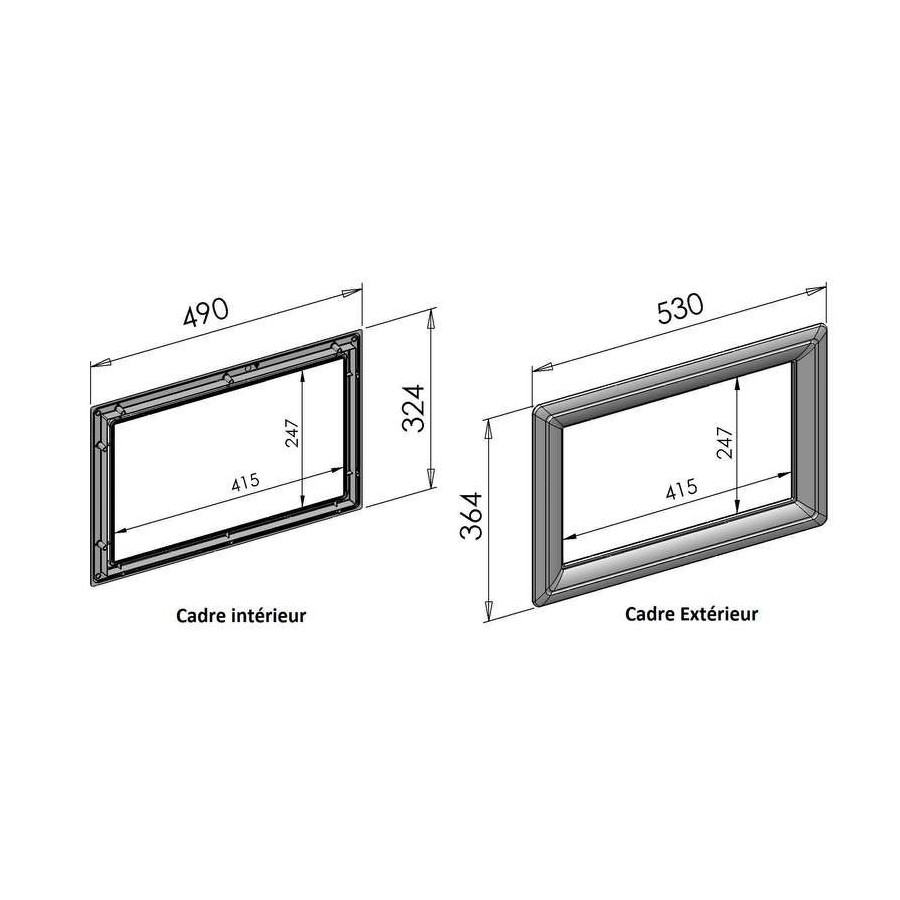

Inner frame PVC white 490x325 + 10 screws 5x40
Outer frame colour PVC 530x365
4 types of glazing: clear plexi, granite or safety clear glazing or granite

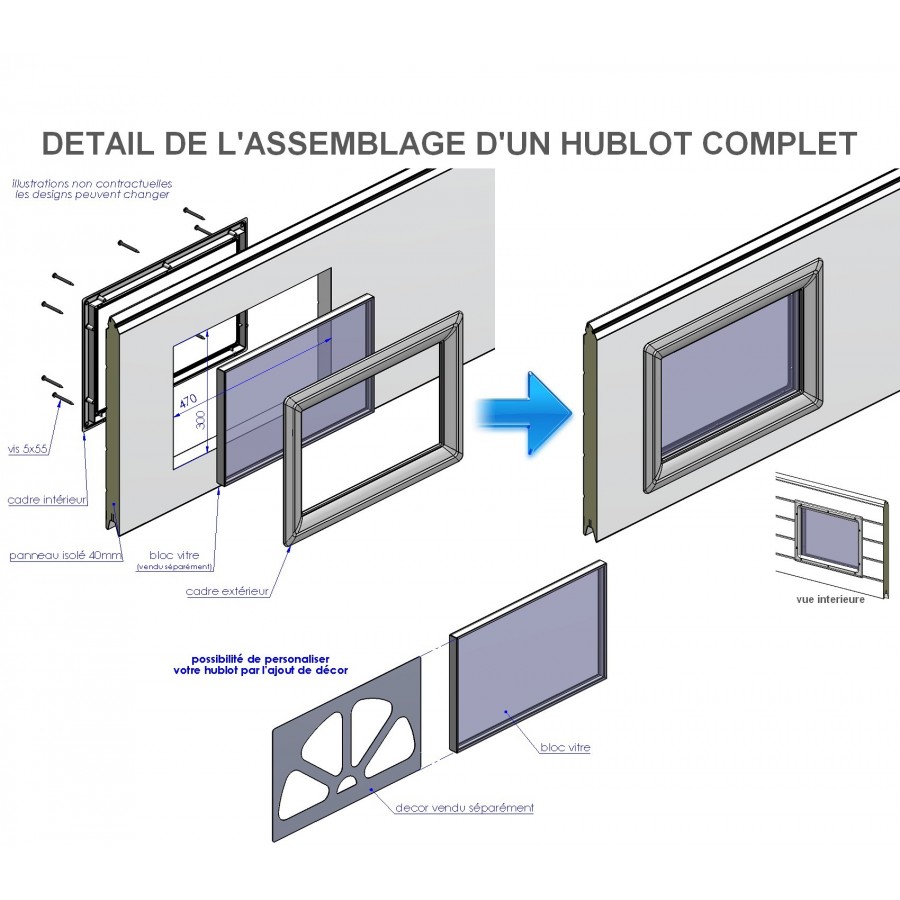

Installation template included : Easy to install, one jigsaw cut and screwed together from the inside

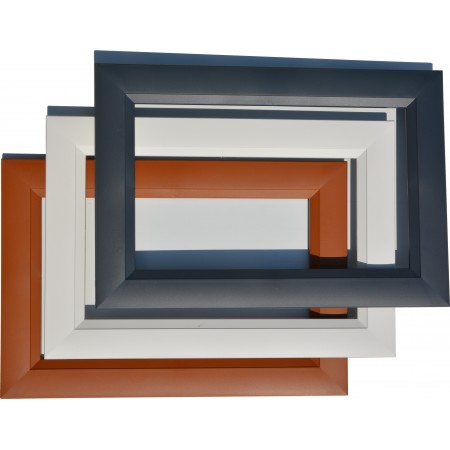

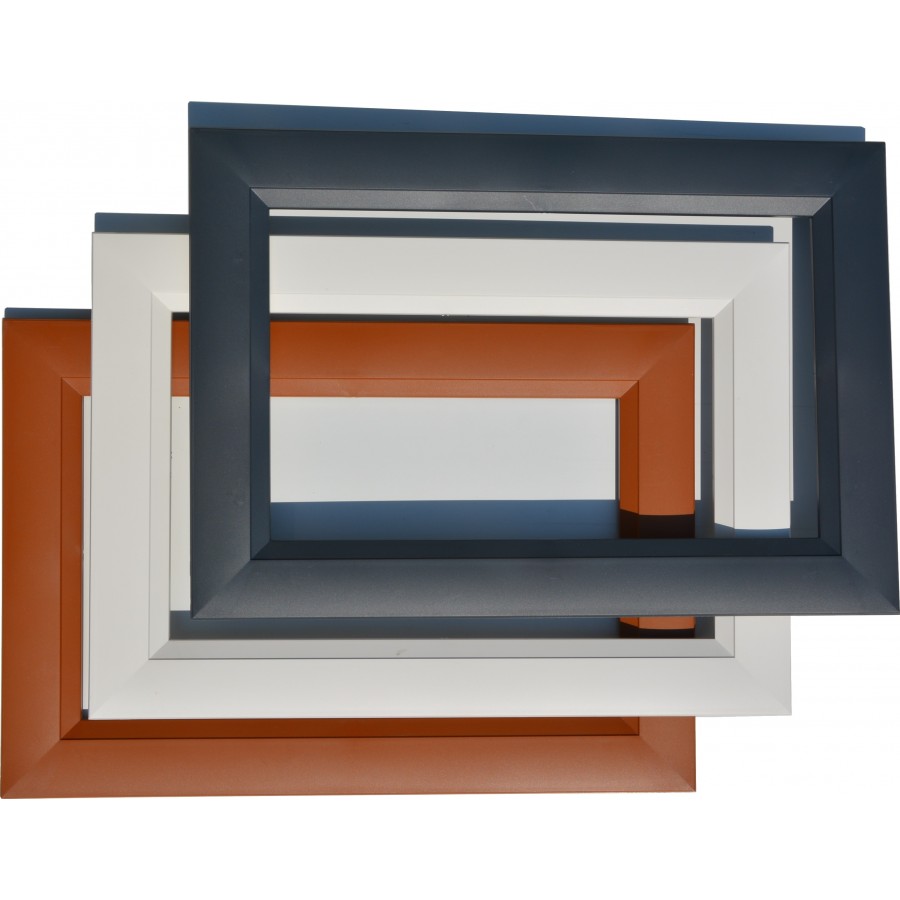

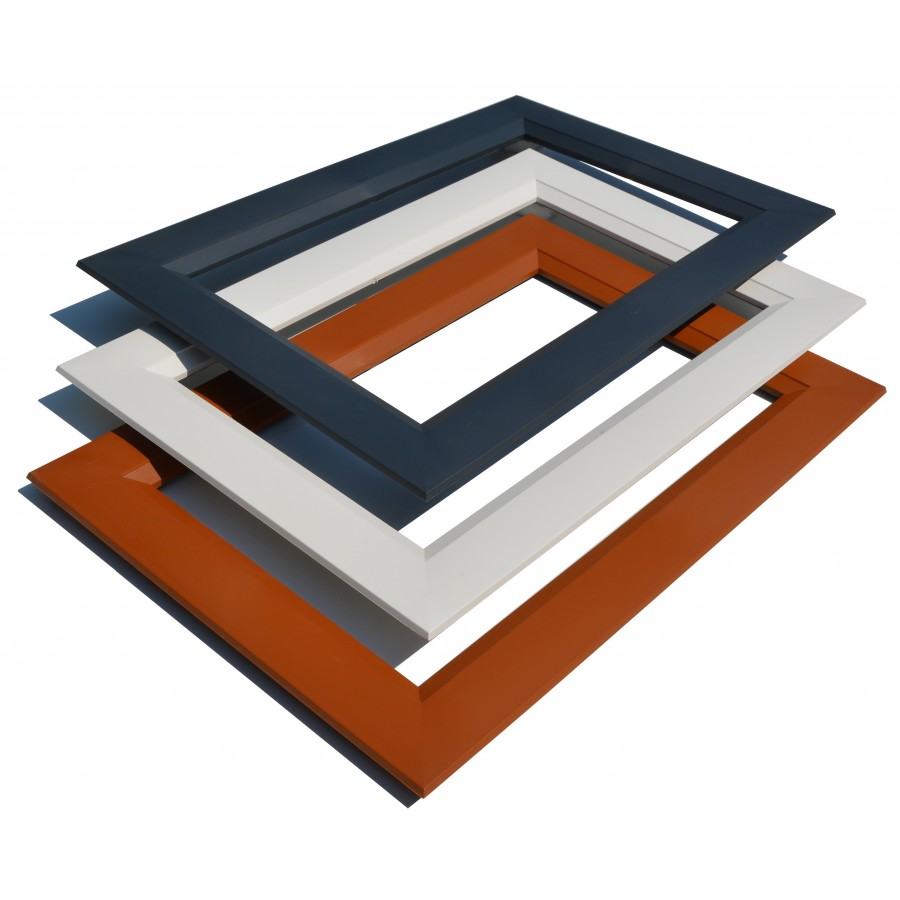

Available in 3 colours:

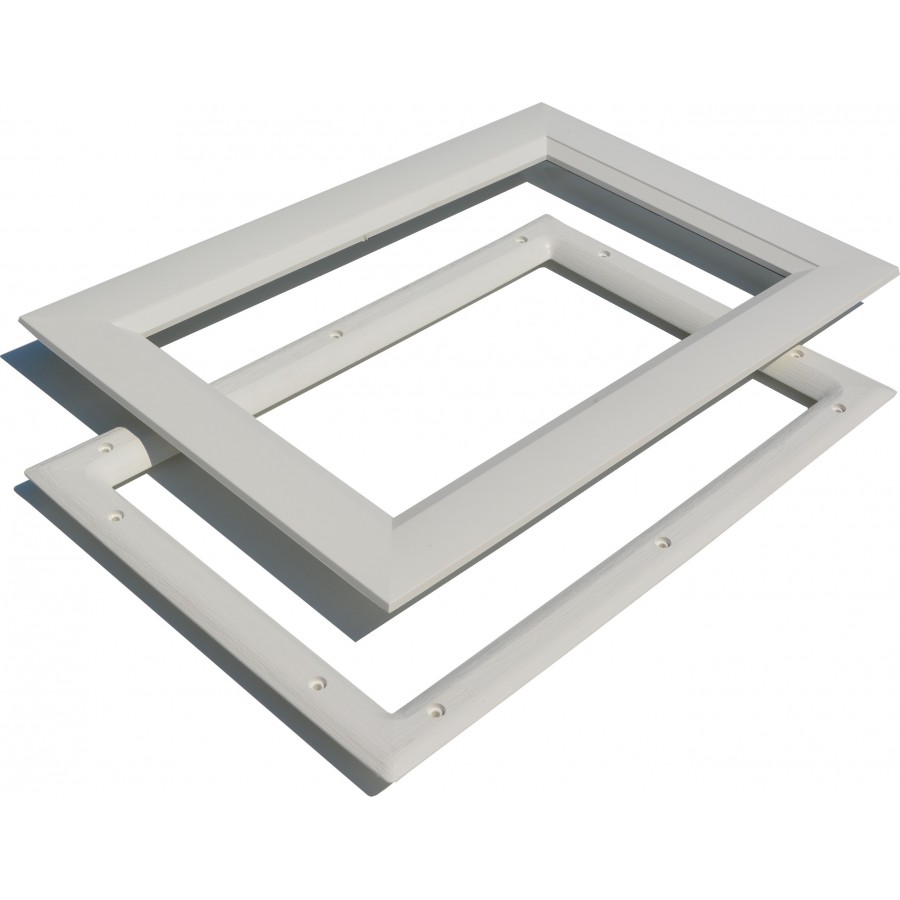

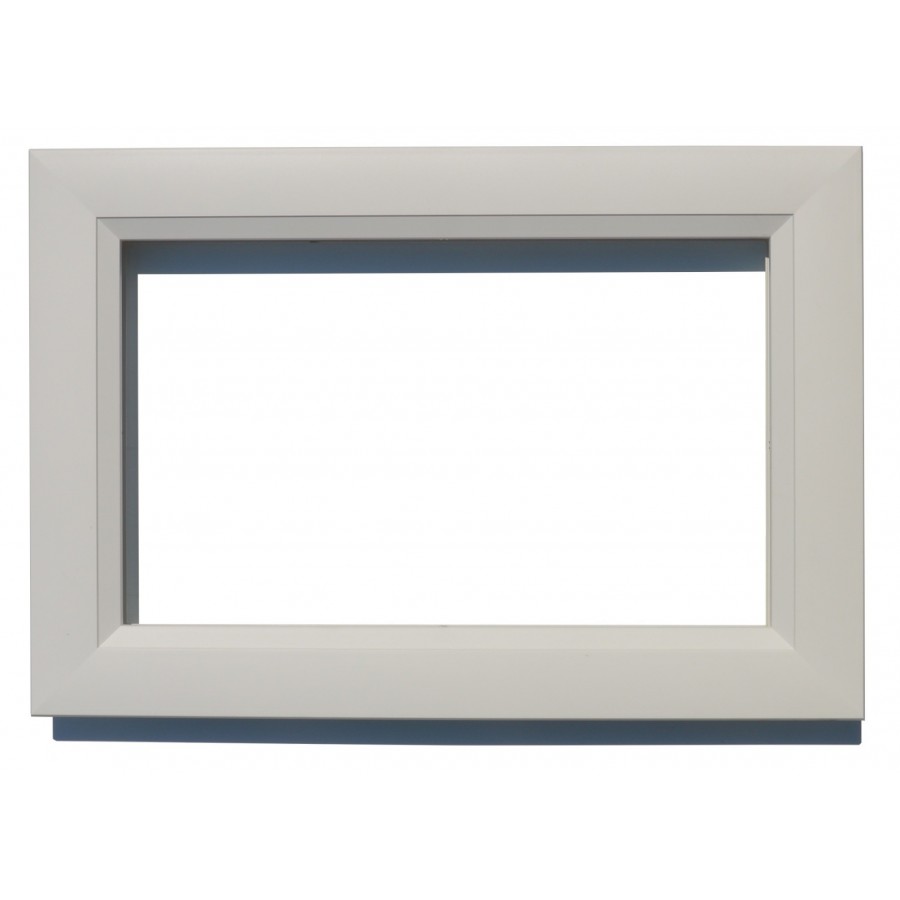

- White RAL 9016

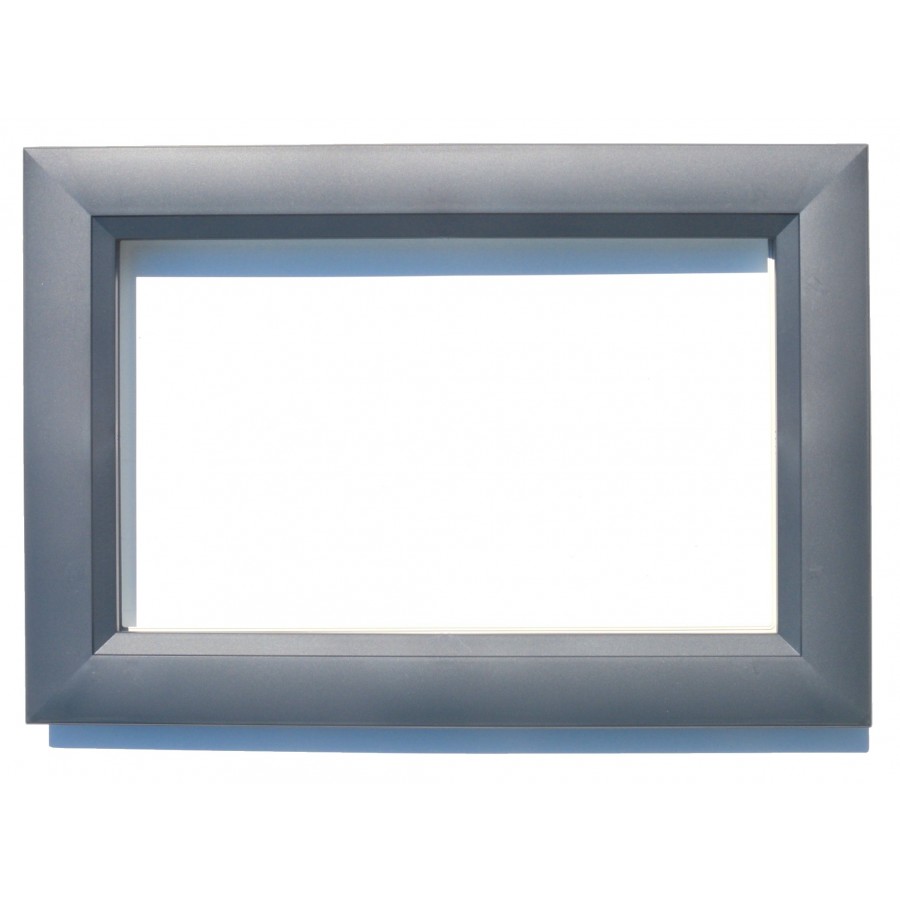

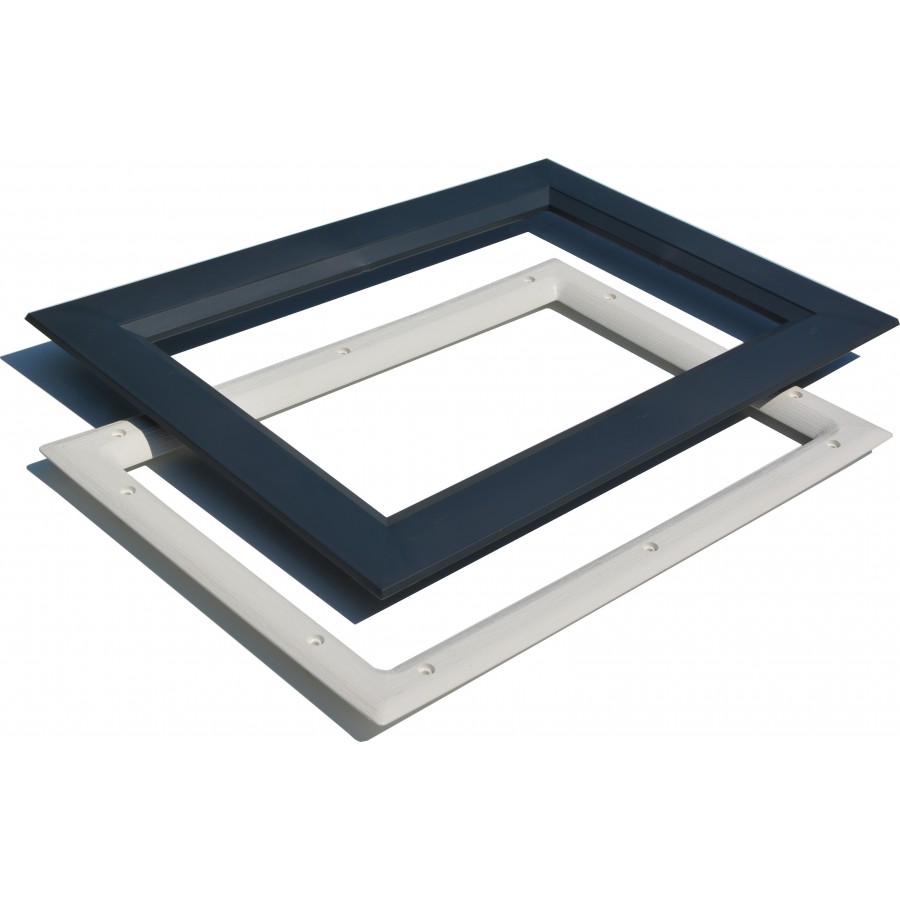

- Anthracite Grey RAL 7016
- Golden Oak RAL 8003
These portholes can be customized by adding "decors" (not supplied) to be inserted inside the glass block.
BE CAREFUL WHEN TIGHTENING THE SCREWS, TIGHTEN MODERATELY
Laying advices :
- If possible, place the panel on trestles, to trace and cut flat and make the assembly. (Make sure to check the lines before cutting!). Cutting 470x300mm
- Use masking tape to avoid scratching the panel with the jigsaw.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
53 |
|---|---|---|
| 4 |
|
5 |
| 3 |
|
3 |
| 2 |
|
1 |
| 1 |
|
0 |
3 Hublots New Garona - Kit complet
Bravo pour vos compétences. De la commande à la livraison, tout est parfait. Merci
Hublot new garona
Parfait livraison 48h et produits conformes je recommanderais chez axone spadone merci l’équipe!
Hublots porte de garage
Livraison ultra rapide et très soignée. Matériel de très bonne qualité. Je recommande fortement ce vendeur.
Hublot pour garage
Bien reçu le colis comme prévu, arrivé le jour prévu. et bien emballer.
3 Hublots
Qualité correcte et très facilement installés. Livraison super rapide ????
Square porthole for 40mm garage door - 48,00 €
1 white RAL9016 or grey RAL7016 external PVC square frame
1 white interior PVC square frame
8 screws 5x40 (for 40 mm insulation)
clear or granite plexi glass block
Outside dimension: 290x290mm
Hole size: 265x265mm
Inner dimension (daylight): 215x215mm
Rectangular Porthole Occitania (Complete Kit) - 34,90 €
Occitania rectangular porthole for 20 or 40mm insulated garage door.
1 Inner frame PVC white
1 PVC outer frame in white, anthracite grey or golden oak colour
1 Metal spacer frame (replaced by 4 rods for ISO20)
1 Clear plexiglass window (ep 20/10)
10 screws 5x40mm
Installation template included : Easy to install, jigsaw cut-out, screwed together from the inside
Metal jigsaw blade - 9,90 €
Jigsaw blade suitable for cutting insulated garage door panels from 20 to 60mm
Designed for cutting our door panels with 2 steel faces and polyurethane foam insulation.
Blade length: 132mm Thickness :1.2mm
