Double horizontal tracks for sectional garage door
Galvanized steel rails thickness 20/10
Flag plates included
Sold in pairs (1 model left + 1 model right)
Suitable for Ø45mm casters
Available in 2 sizes:
Door height ≤ 2250mm
=> Rails L2642mm
Door height > 2250mm and ≤ 3000mm
=> Track L3392mm

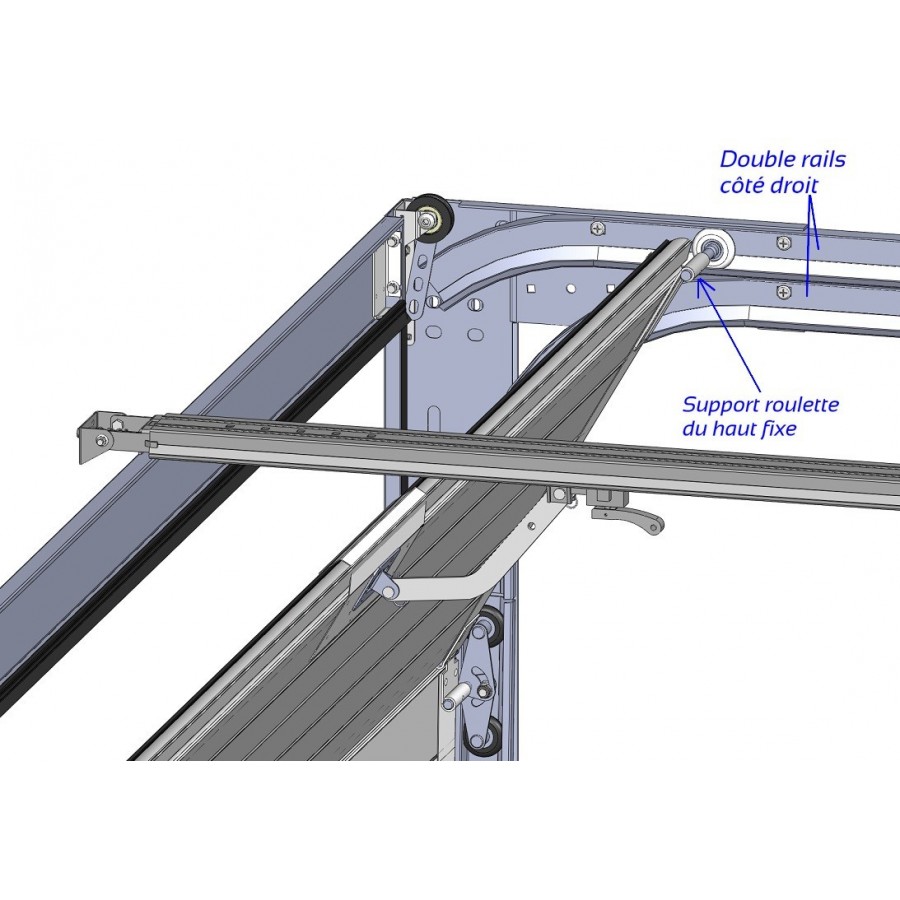

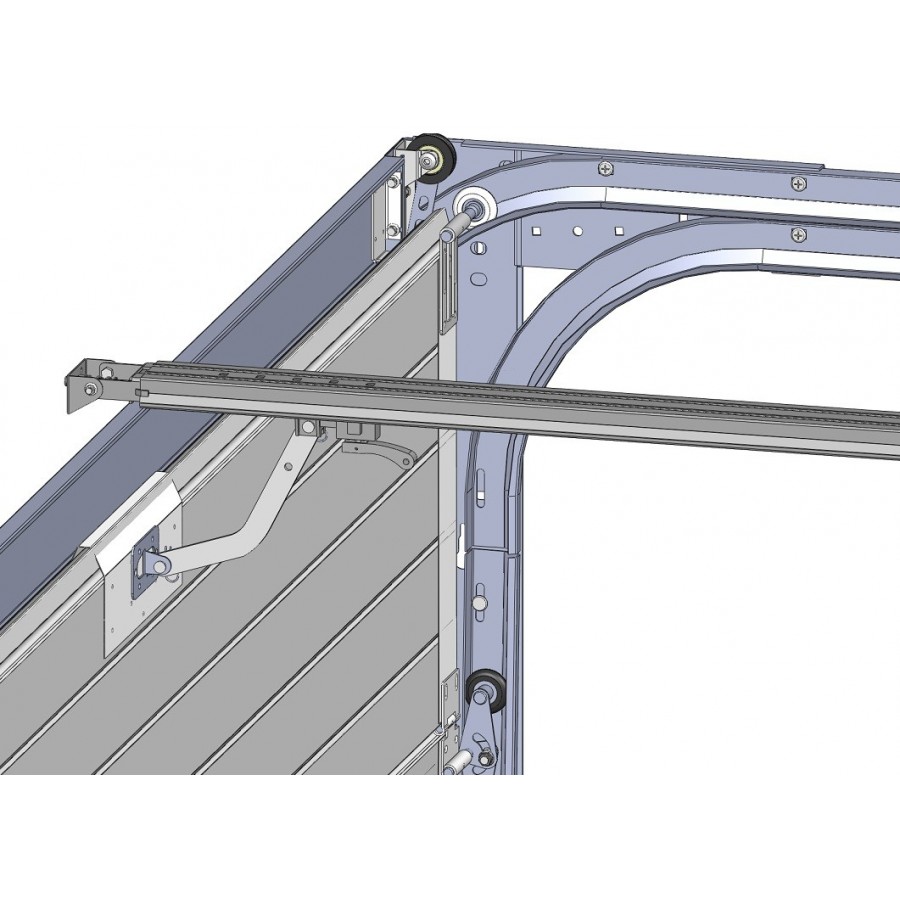

A double rail allows a complete guidance of the garage door leaf. The roller top panel is guided in its own rail.
This also makes it possible to use a sectional door entirely manually, as the top panel is self-adhesively pressed against the garage door frame in the closed position, unlike the monorail system, which requires a motor to press the top panel against the frame.
As this product is bulky, we will entrust the delivery of your order to DB Schenker, a few days after receiving your payment.
Order today and receive your parcel between Tuesday 5 May and Monday 11 May.
Delivery subject to access for heavy vehicles.
We calculate your shipping costs based on the weight of your goods and your delivery address (any customs clearance costs are included).
From € 29.90 tax incl.
Another country ?
If no transport solution is offered in the shipping cost estimate in your cart, contact-us to get a quotation.
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
2 |
|---|---|---|
| 4 |
|
1 |
| 3 |
|
0 |
| 2 |
|
0 |
| 1 |
|
0 |
double rail
impeccable
double rails horizontaux sectionnelle
bon produit bien emballé délai de livraison correct
Tandem castor - 9,90 €
Tandem roller for sectional garage door (the unit)
Axis roller diameter : 11mm
Stem length: 95mm
Wheel diameter : 45mm
Ball bearing
Sold without support hinge (available here )
Hinge for Sectional garage door - 6,60 €
Side support roller hinge for sectional garage door (the unit)
White lacquered side hinge to be used at the joints between the panels of a sectional garage door, designed to support castors with an 11mm diameter axle.
For use with tandem wheels and guide roller for a side sliding sectional door
Top Sectional Roller Brackets + Casters (pair) - 21,00 €
Top Sectional Garage Door Roller Bracket Fixed (Pair)
Axis roller diameter 11mm
Diameter of the roller 45mm
Ball bearing
For double track door
This pair of Top Sectional garage door brackets roller is fixed and is only compatible with double track sectional garage doors.
Crossbar Telescopic Spacing 2x1.80m - 45,90 €
Cross beam Telescopic Spacing 2x1.80 meter (the unit)
This crossbar allows you to fix the back of your garage door tracks to the ceiling and/or walls. It can be extended up to a maximum of 3m.
A 2x2.40m model, which can be deployed up to 4.2 meters is available here .
As this article is bulky, the delivery time may be slightly longer. Thank you for your understanding.
Roller Spindles for garage door - 6,60 €
Roller for up-and-over and sectional garage doors
Roller diameter : 45mm
Spindle diameter: 10 or 11mm
Ball bearing
3 models:
Spindles Ø 10mm - Spindles lenght (without roller) 85mm
Spindles Ø 11mm - Spindles lenght (without roller) 95mm
Spindles Ø 11mm - Spindles lenght (without roller) 150mm
The standard diameter of the roller spindles is 11 mm. For special requests, you can also opt for the 10 mm diameter version.
Sliding rail/spacer bar connections (pair) - 12,00 €
These parts allow the rear attachment of the rails to the spacer bar.
Their design allows them to slide easily to adjust their position on the spreader bar.
Dimension: 54x120mm
In galvanized steel
Sold in packs of 2 (1 left + 1 right)
6 screws + 6 M8 nuts supplied
