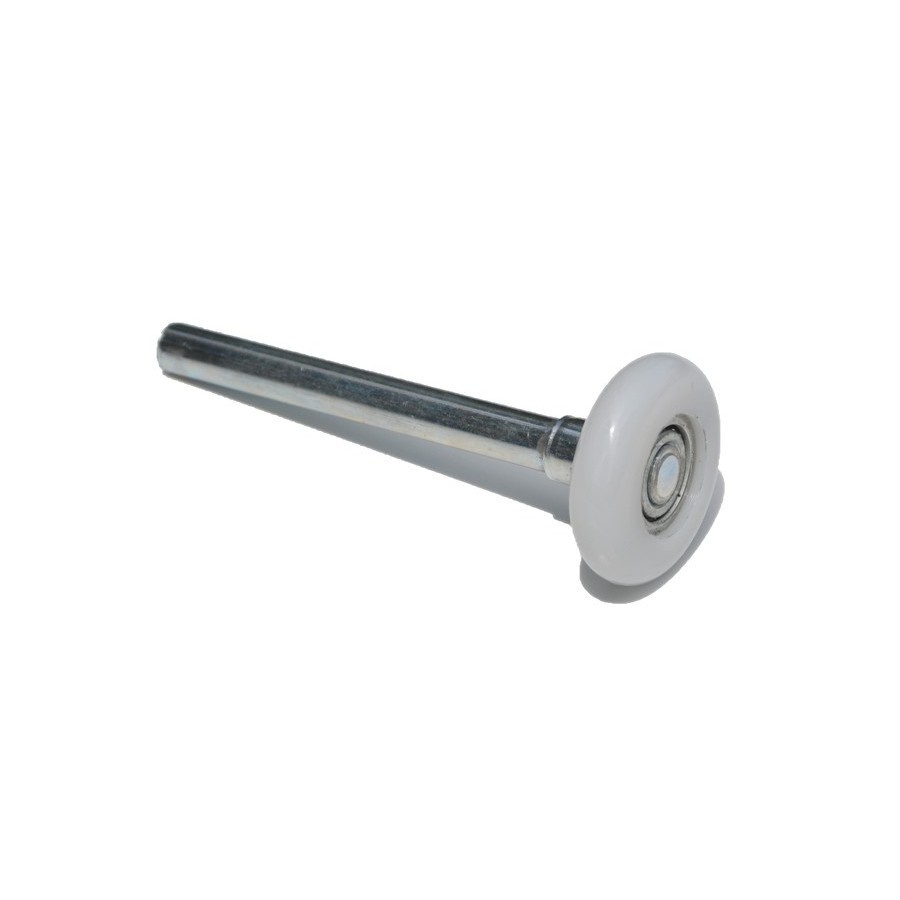

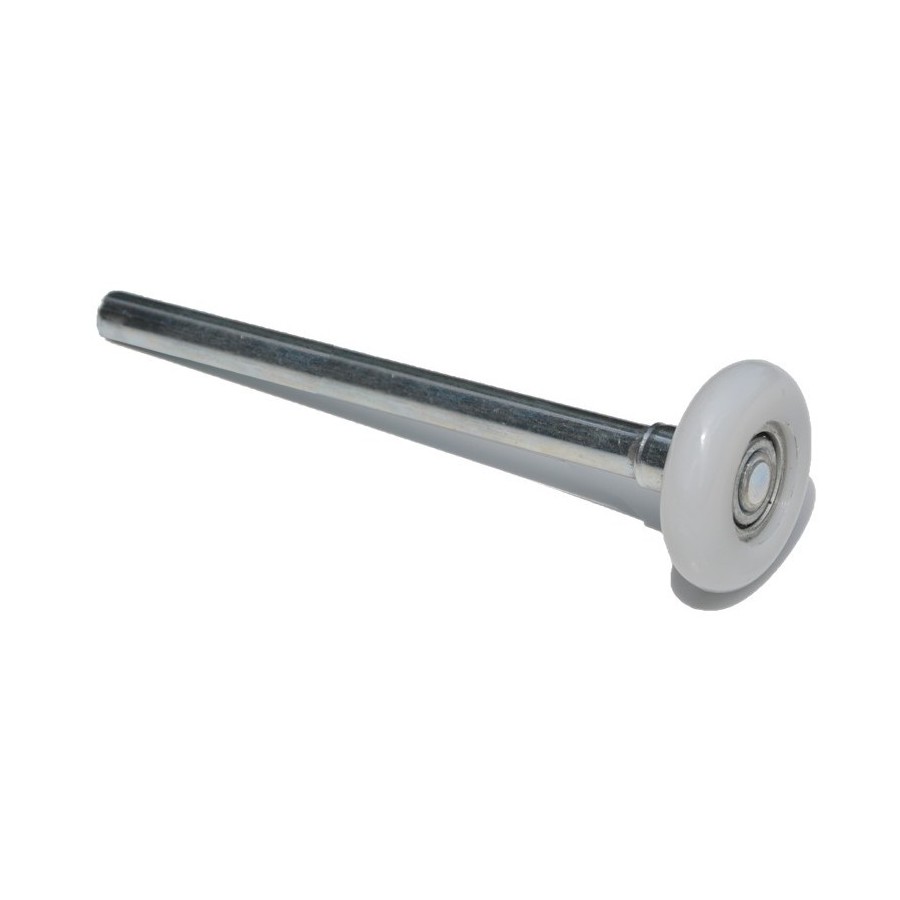

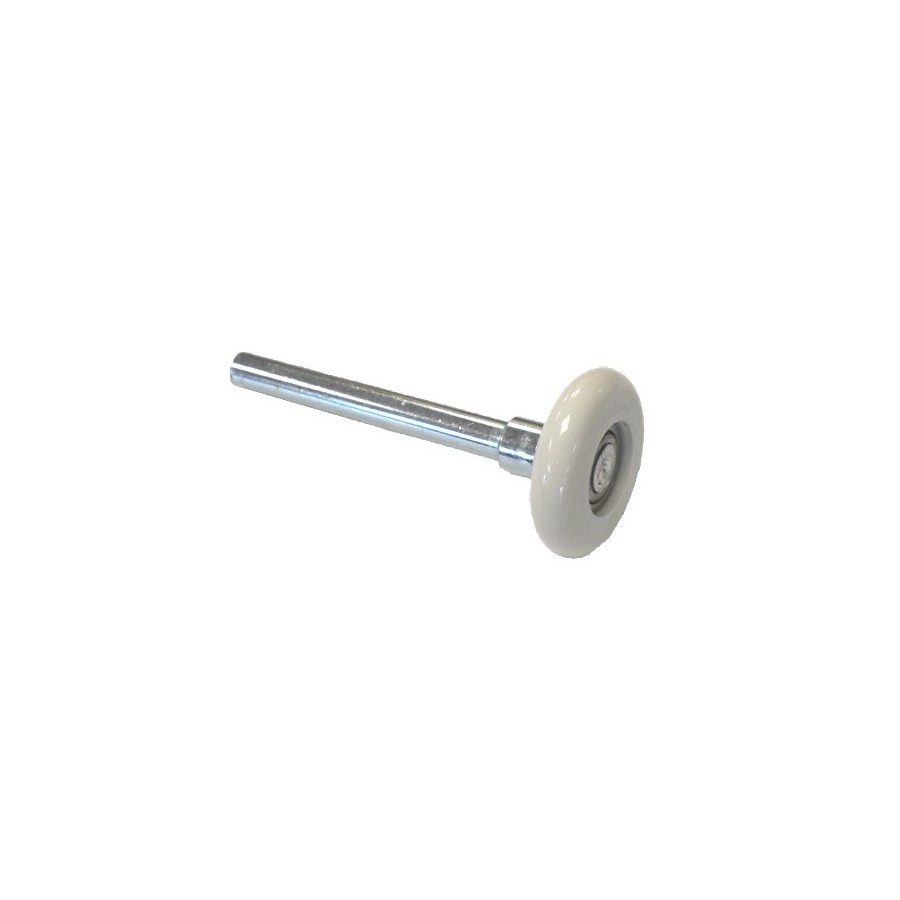

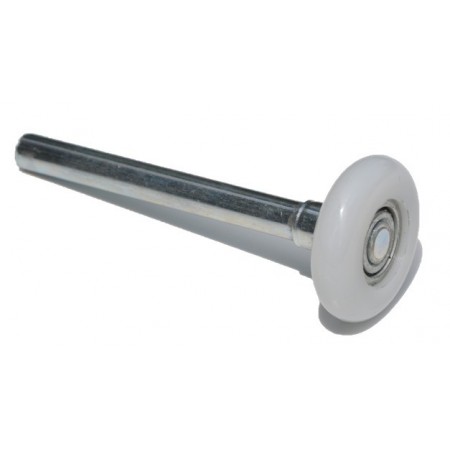

Roller for up-and-over and sectional garage doors
Roller diameter : 45mm
Spindle diameter: 10 or 11mm
Ball bearing
3 models:

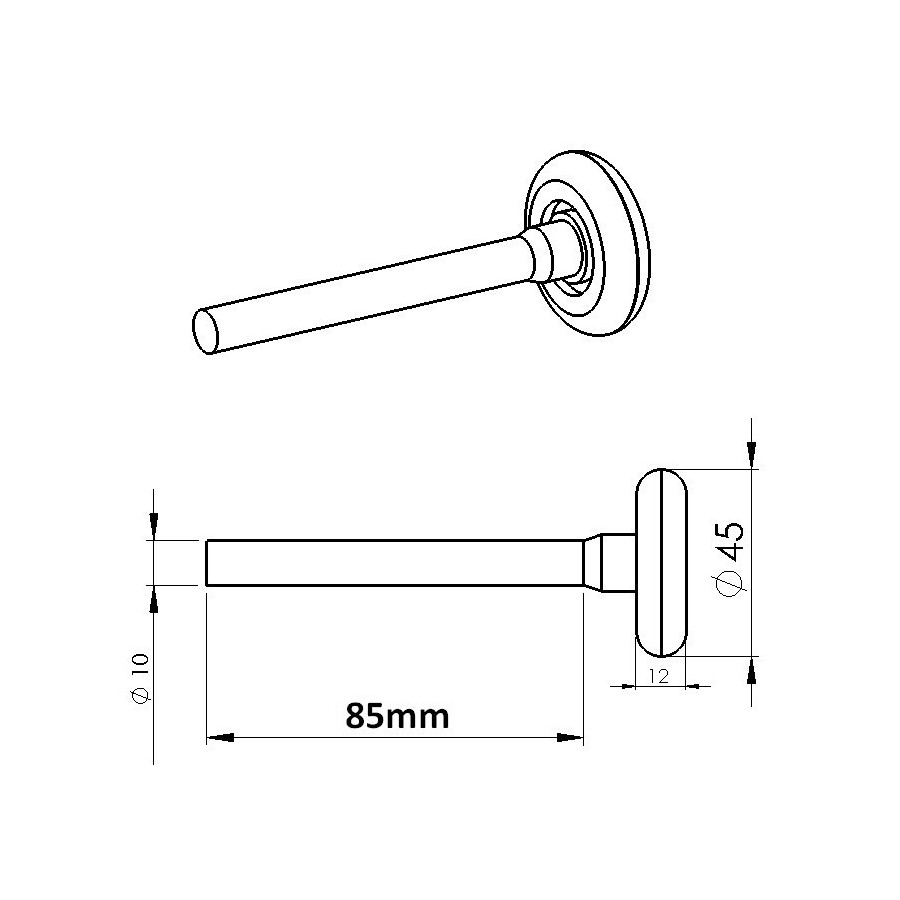

Spindles Ø 10mm - Spindles lenght (without roller) 85mm
Spindles Ø 11mm - Spindles lenght (without roller) 95mm

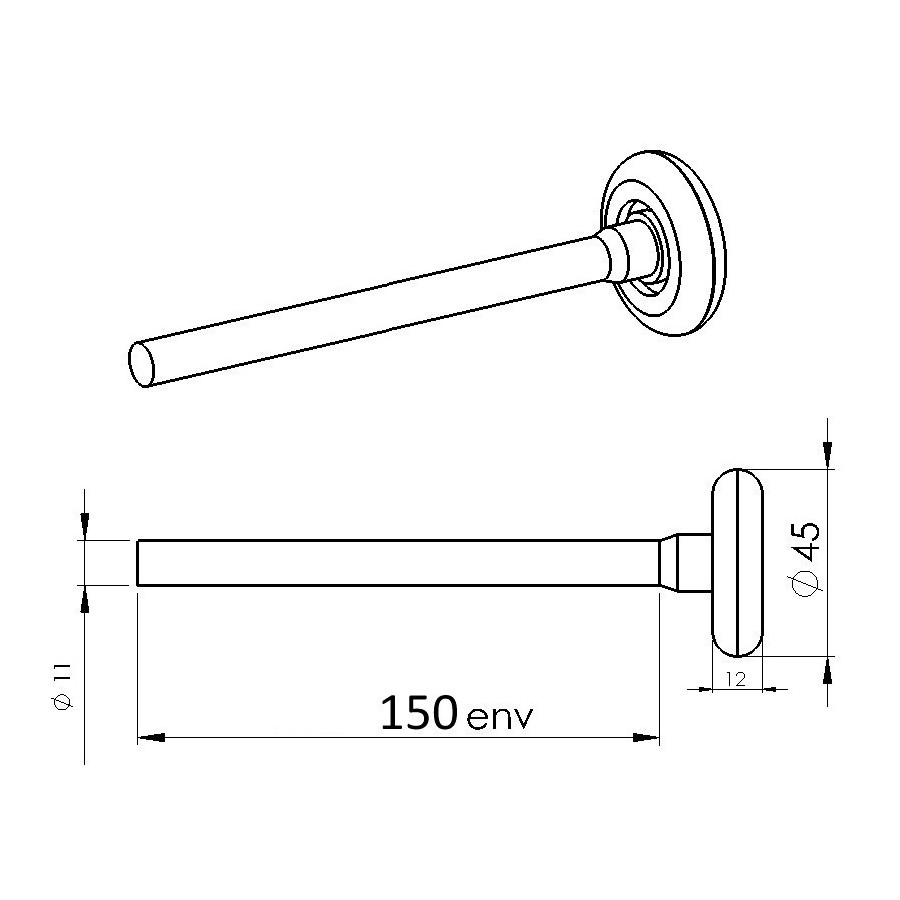

Spindles Ø 11mm - Spindles lenght (without roller) 150mm
The standard diameter of the roller spindles is 11 mm.
For special requests, you can also opt for the 10 mm diameter version.

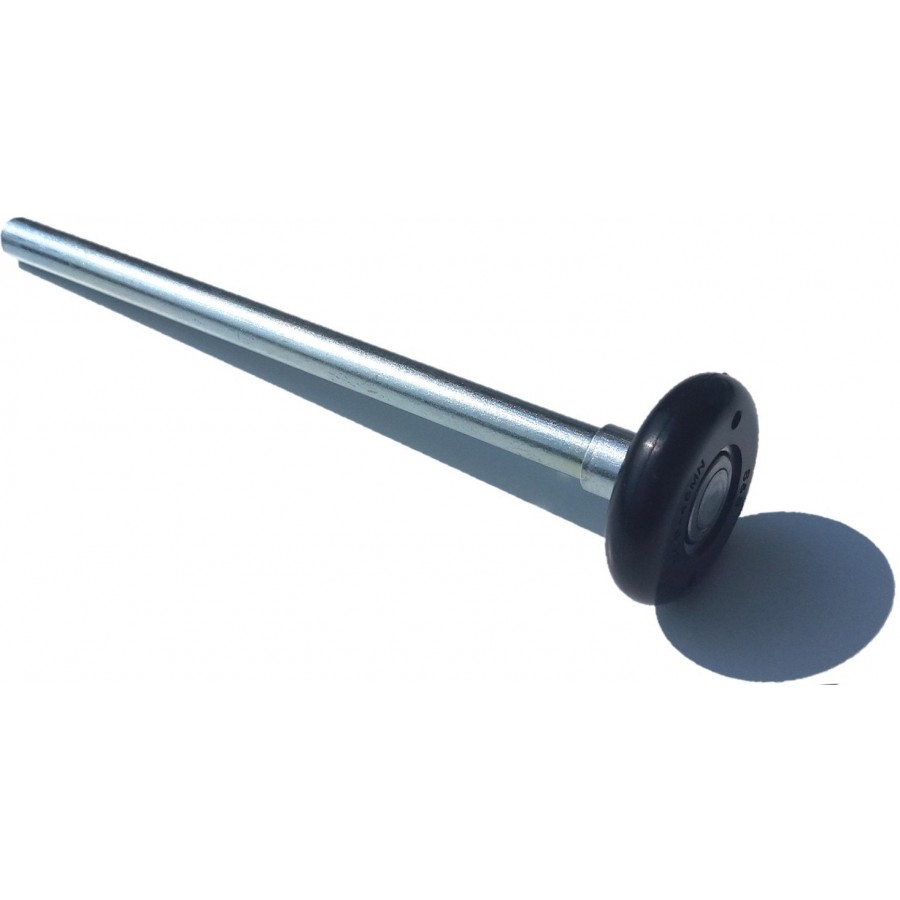

According to arrivals, the colour of the roller 150mm axle can be black or white.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
195 |
|---|---|---|
| 4 |
|
7 |
| 3 |
|
1 |
| 2 |
|
1 |
| 1 |
|
0 |
porte de garage sectionnelle Della Vechia
Pièce qu'on ne trouve clairement pas partout, généralement toujours en 11mm de diamètre. Ici, parfait en 10mm! Semble identique à la pièce d'origine.
Roulettes
Parfait sur tout. Produit de bonne qualité. Expédition emballage. Impossible de faire mieux. Bravo !
Porte basculante avec portillon
Top Je recommande
Porte de garage sous marque
Roulements changer impeccable seul point très négatif le paquet reçu n était pas bien fermé et heureusement il ne me manque rien. A la sortie du point de livraison un Roulement est tombé du carton.Donc faites attention à l emballage
Porte basculante de marque inconnue
Finis les grincements et vive la légèreté de la porte
Cette pièce peut-être compatible avec certaines portes de garage Hörmann, Novoferm, France Fermetures, La Toulousaine, Gypass, Fame, Aludoor, Teckentrup, Javey, Mischler, Futurol, Della Vecchia, Soprofen, Leroy Merlin / AGS, Maguisa, Good Home,
Tandem castor - 9,90 €
Tandem roller for sectional garage door (the unit)
Axis roller diameter : 11mm
Stem length: 95mm
Wheel diameter : 45mm
Ball bearing
Sold without support hinge (available here )
Centering Rings (Set of 6) - 7,20 €
Centering Rings (Set of 6)
Width : 10 mm
Inside diameter : 11.5 mm
Material: Steel
These bushings are inserted on the axes of the rollers and allow the garage door to be centred. They thus limit the movement of the door leaf.
If your garage door nevertheless shifts too much to one side, you may want to reconsider the parallelism of the tracks .
Lock Washer / Clip roller (Set of 10) - 8,40 €
This slotted washer (Quick Lock) locks the axle of the valve roller and prevents the valve from coming out of its support. Suitable for castors with steel axle with a diameter of 10mm or 11mm. Sold in packs of 10. To insert it on the axis of theroller, use a 20mm tube (or pipe wrench) and a hammer.
