Lined tension springs (1 large spring + 1 small B Ø18 inside) compatible with old Spadone garage doors, Maguisa or AGS among others.
Several combinations to choose from:

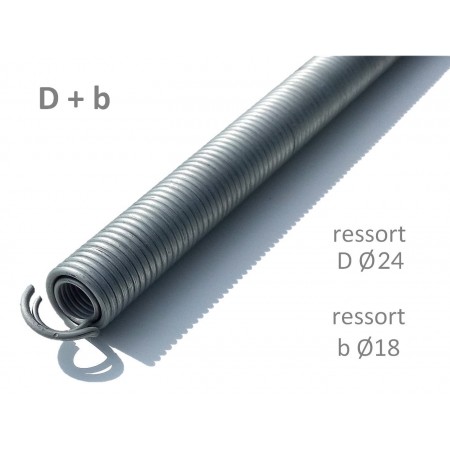

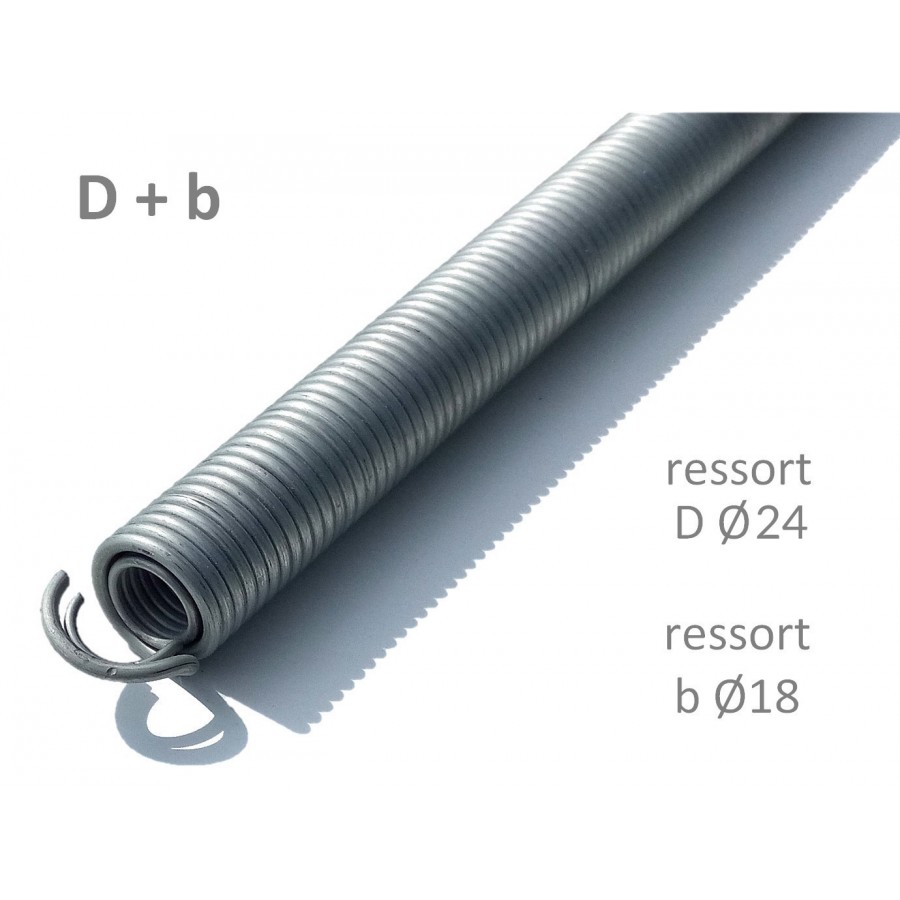

B(Ø18) + D (Ø24) => up to 5m².

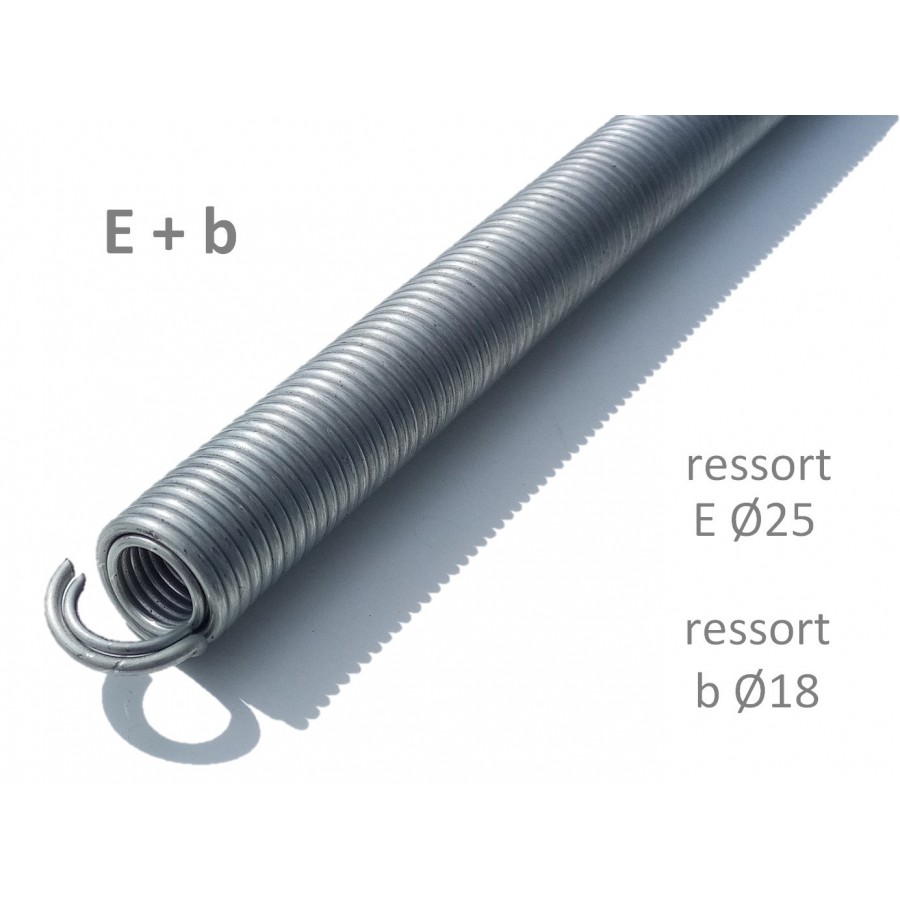

B(Ø18) + E (Ø25) => up to 6m².

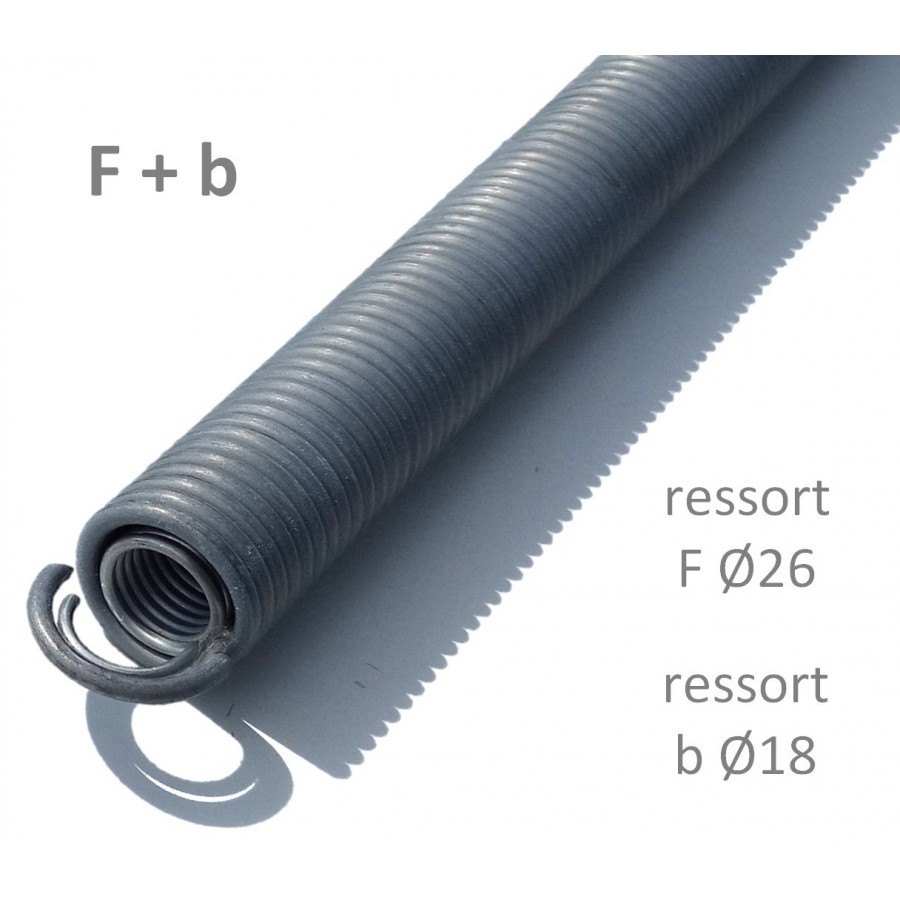

B(Ø18) + F (Ø26) => up to 7m².

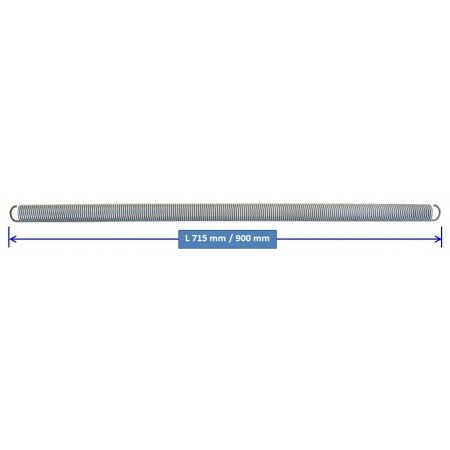

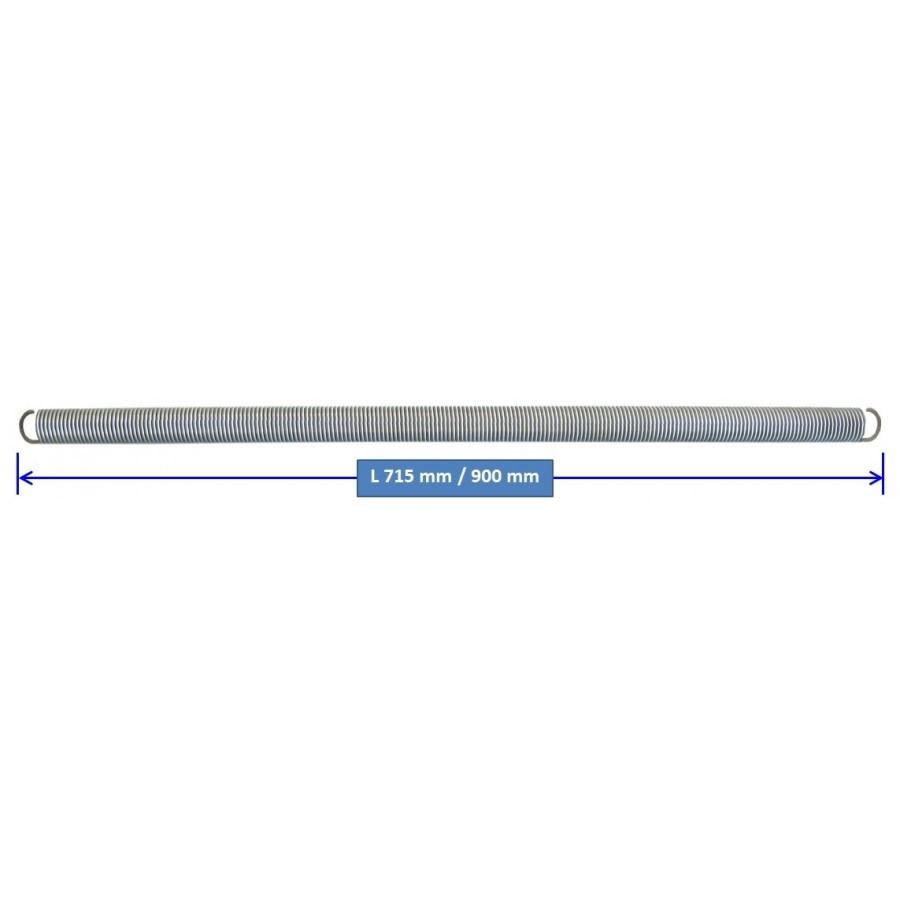

2 Lengths :
715 mm => H Door
900 mm => H Door ≥ 2400
Lock your garage door in the open position using a gasket to change the spring safely. Thus, your springs will not be in tension.
These springs can replace the following references on Maguisa, AGS, EPU 40, Ecostar, Ecotherm or Tubauto garage doors.
For AGS Sectional Door with Extension spring 790, chose the D+B (715mm) version.
Our tension springs have a hook loop at each end. For the Hormann references mentioned above, you will simply have to drill a hole (diameter 6 to 7mm) in the center at the bottom of the pulley support and in the center at the top of the bottom support of the spring hook in order to be able to install them.
Replace garage door springs in pairs as much as possible. This makes it possible, on the one hand, to maintain a balancing force on either side of the door. On the other hand, if one of the springs breaks, it means that the other spring is likely to break in the very short term as well.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
113 |
|---|---|---|
| 4 |
|
6 |
| 3 |
|
0 |
| 2 |
|
0 |
| 1 |
|
3 |
Porte de garage
Parfait
Porte de garage
J'ai réussi à trouver les ressorts grâce à votre site. Merci
Ressort de porte de garage
Top ! Parfait et livré en 2 jours !
Ressort porte de garage.
Le produit est conforme à la description. Le délai de livraison a été respecté.
Porte garage sectionnelle
Reçus en 2 jours, montage selon les indications. Perçage des 2 pièces. Changement fait en 1h À voir dans le temps.
Cette pièce peut-être compatible avec certaines portes de garage Hörmann, Novoferm, Tubauto, Leroy Merlin / AGS, Maguisa, Good Home,
Steel cable diameter 2mm (by meter) - 12,00 €
Cable diameter 2mm in galvanized steel
Supplied with 2 seals to form a loop at the end of the cable or avoid fraying.
Sinkers can be crimped manually & easily with a hammer.
Useful especially for replacing cables on the majority of Wayne Dalton garage doors.
Cable cut on demand. Do not hesitate to contact us for a specific need for a long length!
Nylon Mobile Pulley Diameter 50mm double groove + single-spring support - 15,60 €
Nylon Mobile Pulley Ø 50mm Double Groove delivered assembled with its steel support for use on a door with a single loop spring per side (or double spring)
Diameter 50mm
Ball bearing
Delivered assembled with mobile support
A single hole in the center for hanging a single (or double) loop spring
The unit
Heavy duty ball bearing with heavy duty ABS sub-molding (better than steel pulley)
Hörmann / Tubauto sectional door springs - 84,00 €
Set with doubled traction springs (1 large spring + 1 small one inside), pulley and low hook for replacing the original springs of a Hörmann or Tubauto door referenced 754 or other variants 751, 752, 753, 755, 756, 757 .
The kit includes:
1 double spring pack
1 ball bearing pulley, overmolded nylon, double groove with spring hook support
1 low hook with 2 6.3x15 sheet metal screws
1 kit = 1 side of the door
