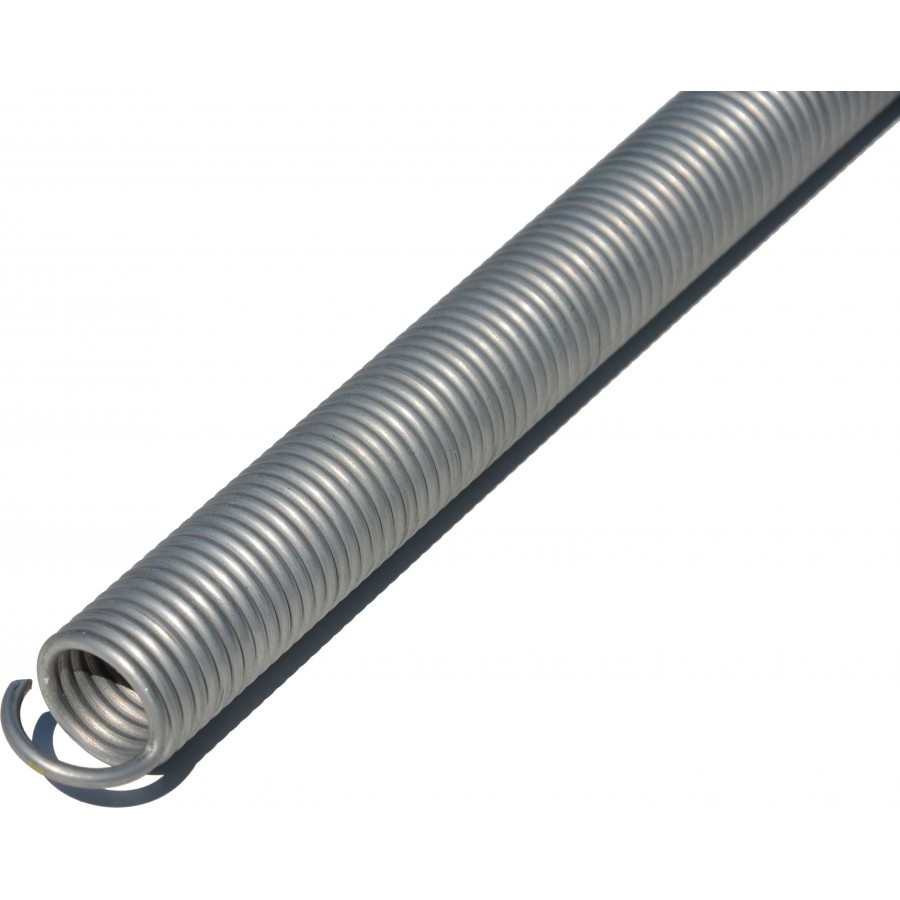

Sectional door spring - Type C

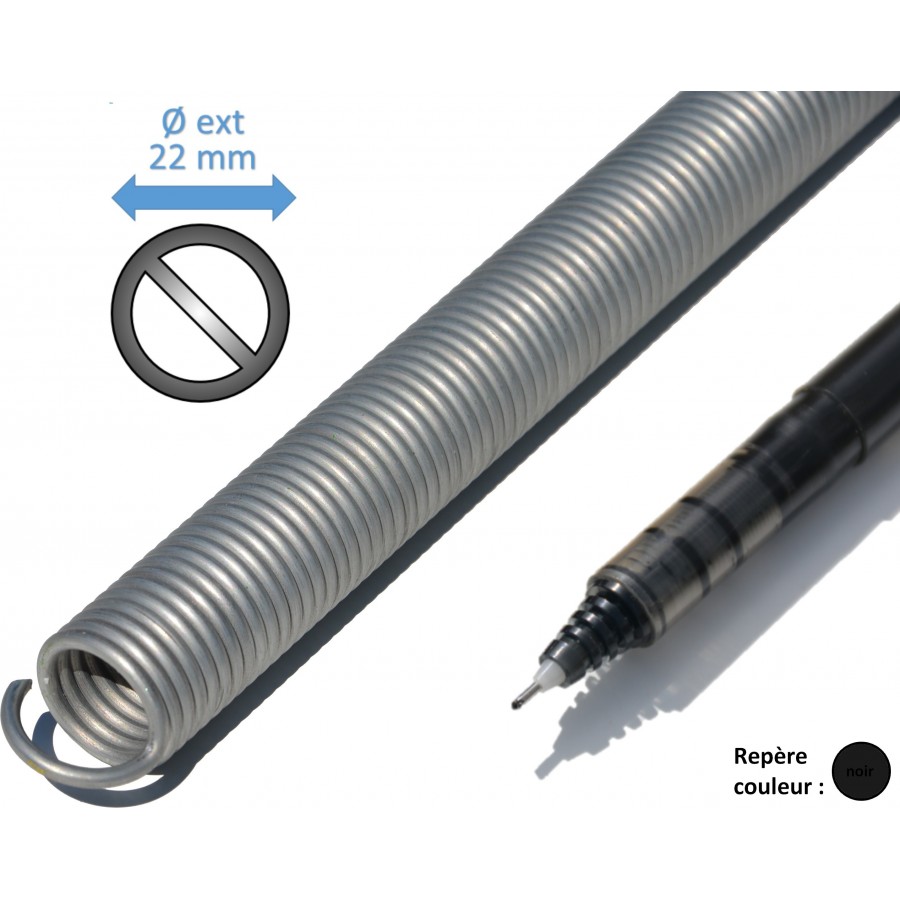

Diameter ext. 21.5mm

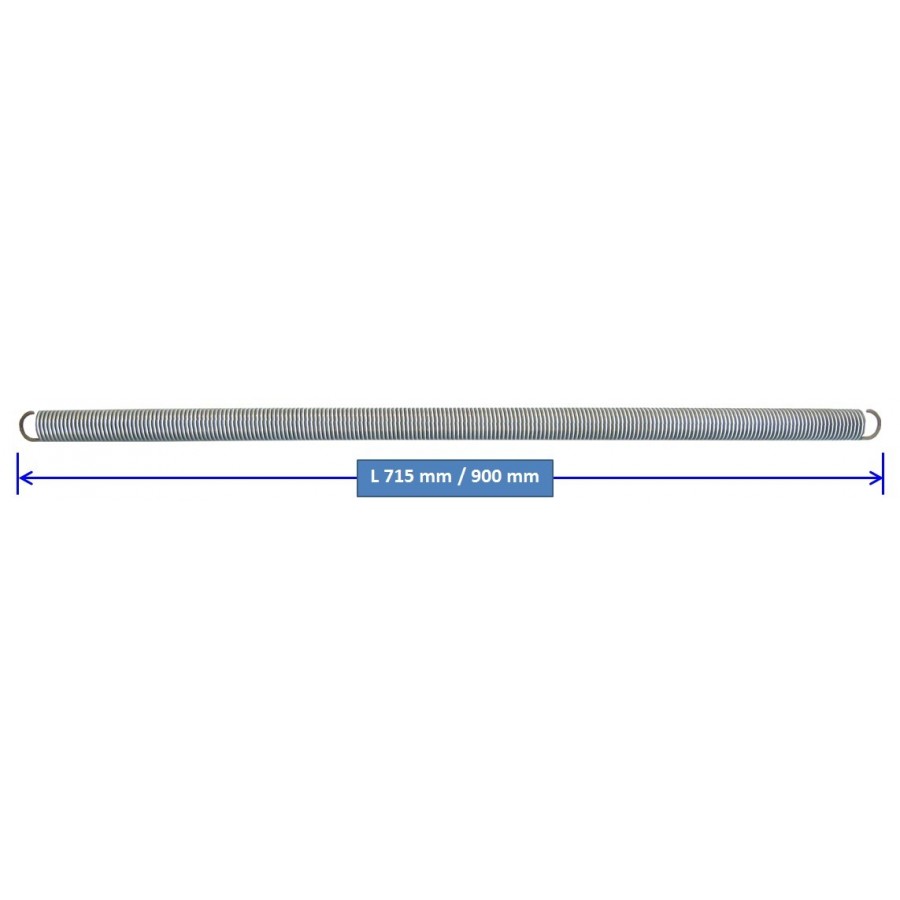

Length: 715/900mm (including buckles)
Wire diameter: 2.4mm
Attention, available in 2 Lengths:
Length 715 mm generally door height 2400mm maxi
Length 900 mm door height >= 2400
If you have any doubt about the size you need to order the easiest way is to measure your spring or consult the spring table here
Type B, C, D, E and F springs are compatible with sectional garage doors (height 2000 to 2400) with tension springs of the following brands: Spadone, Soferba, Novoferm, Soprofen, Hormann, Tubauto, Normstahl, Teckla, Garador ...
Maximum tension: we recommend not to tension the spring beyond 2.5 times its length to preserve its normal life span.
To find out which model of spring to replace, measure it.
| Type of springs | Available lengths (including buckles) |
Diameter |
| Spring Type B > | 715 mm / 900 mm | 18 mm |
| Spring Type C (this one) | 715 mm / 900 mm | 21.5 mm |
| Spring Type D > | 715 mm / 900 mm | 24 mm |
| Spring Type E > | 715 mm / 900 mm | 25 mm |
| Spring Type F > | 715 mm / 900 mm | 26 mm |
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
62 |
|---|---|---|
| 4 |
|
4 |
| 3 |
|
1 |
| 2 |
|
0 |
| 1 |
|
0 |
Porte garage
Impeccable
Ressorts kit réparation porte garage
Commande prise rapidement et envoi aussi rapide Tout ok
Porte de garage
Bonjour rien à dire sûr axone-spadone sauf que c'est n'est pas la première fois que je commande et ils sont pas decevable toujours aussi correcte et ponctuelle moi je donne dix sur dix pour les commande. Filippo
Porte de garage
J ai été très bien reçu et conseillé. En plus un petit geste sans rien demandé je n hesiterai pas à revenir. Merci
Porte de garage soprofen
Conforme à ce que j'avais et livraison comme indiqué
Cette pièce peut-être compatible avec certaines portes de garage Hörmann, Novoferm, Teckentrup, Soprofen,
Mobile Nylon Pulley Diameter 50mm single groove + brackets - 15,60 €
Mobile Nylon Pulley Set with ball bearing, diameter 50 mm, delivered mounted with its spring hook support (the set)
Pulley diameter 50mm
Ball bearing
Heavy-duty ball bearing with ABS sumoulage.
The Nylon pulley is more resistant than a steel pulley , by choosing it, you extend the life of your garage door.
Cable diameter 3mm with loop (pair) - 22,00 €
Ø3mm steel cable with 7x19 mm loop
+ 2 leads to be crimped with a hammer
Not suitable for replacing Ø2mm cables (e.g. Wayne Dalton...)
3m: for a vertical spring door of H 2000 (maximum H2125 mm)
5m20: vertical spring garage door H 3000 (compatible with old spring garage doors) horizontal Height 2125)
Nylon Pulley Diameter 50mm Single Throat - 12,00 €
Nylon Overmolded Bearing Pulley - Single Throat (the unit)
For shaft Ø 10mm
Ø of the pulley 50mm
Ball bearing
Optional: 1x screw M10x40 + 1x brake nut M10 + 2x thin nuts M10
Highly resistant ball bearing with ABS overmoulding.
The Nylon pulley is more resistant than a steel pulley , by choosing it you extend the life of your sectional door.
Sectional Frame Seal - 19,50 €
Bi-material frame seal for sectional garage door (the unit)
This joint is clipped onto the edges of the uprights or the top rail and is easily overlapped with a pruning shear or cutter.
Attention, this seal is compatible with Spadone doors and also Novoferm Maeva (1, 2 and 2b) sectionnal door. We do not guarantee complete compatibility with other brands.
Roller Spindles for garage door - 6,60 €
Roller for up-and-over and sectional garage doors
Roller diameter : 45mm
Spindle diameter: 10 or 11mm
Ball bearing
3 models:
Spindles Ø 10mm - Spindles lenght (without roller) 85mm
Spindles Ø 11mm - Spindles lenght (without roller) 95mm
Spindles Ø 11mm - Spindles lenght (without roller) 150mm
The standard diameter of the roller spindles is 11 mm. For special requests, you can also opt for the 10 mm diameter version.
