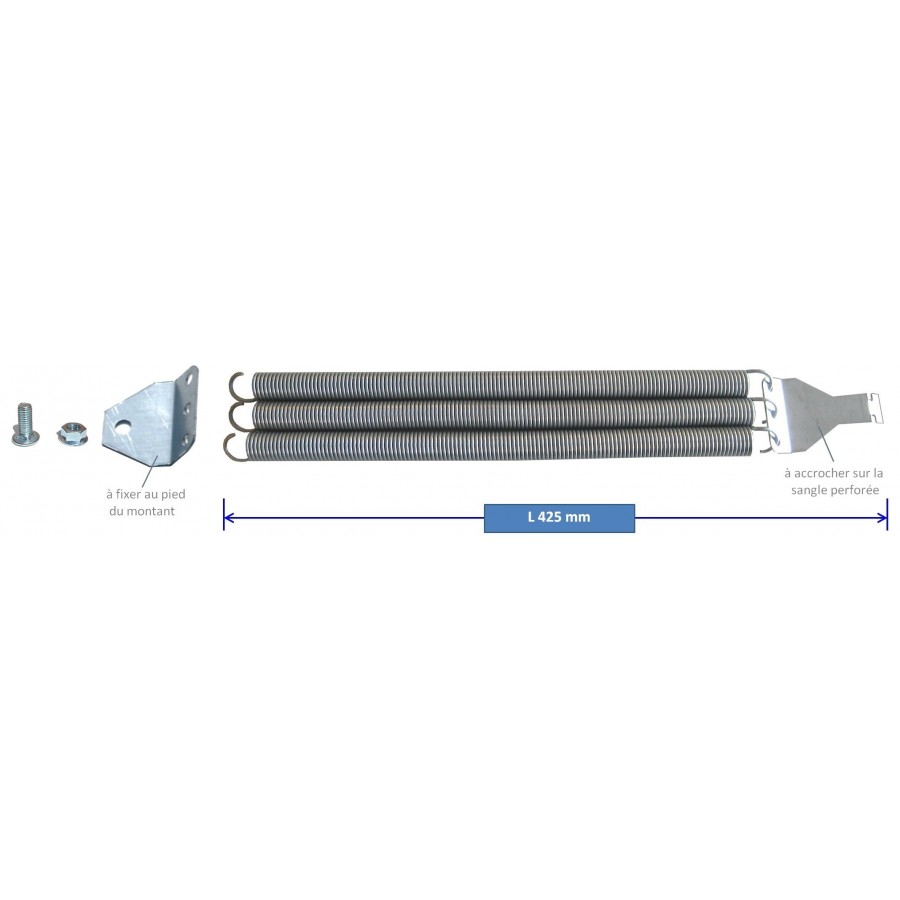

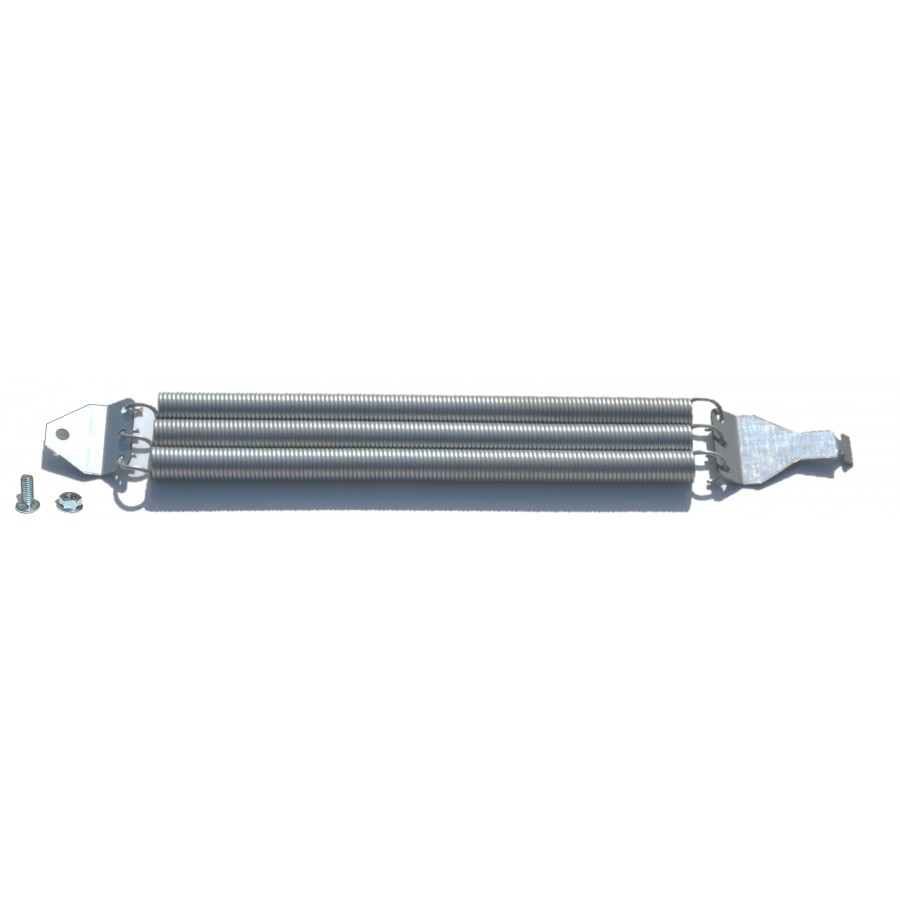

3 springs type A (Øext 19mm / L total 355mm)

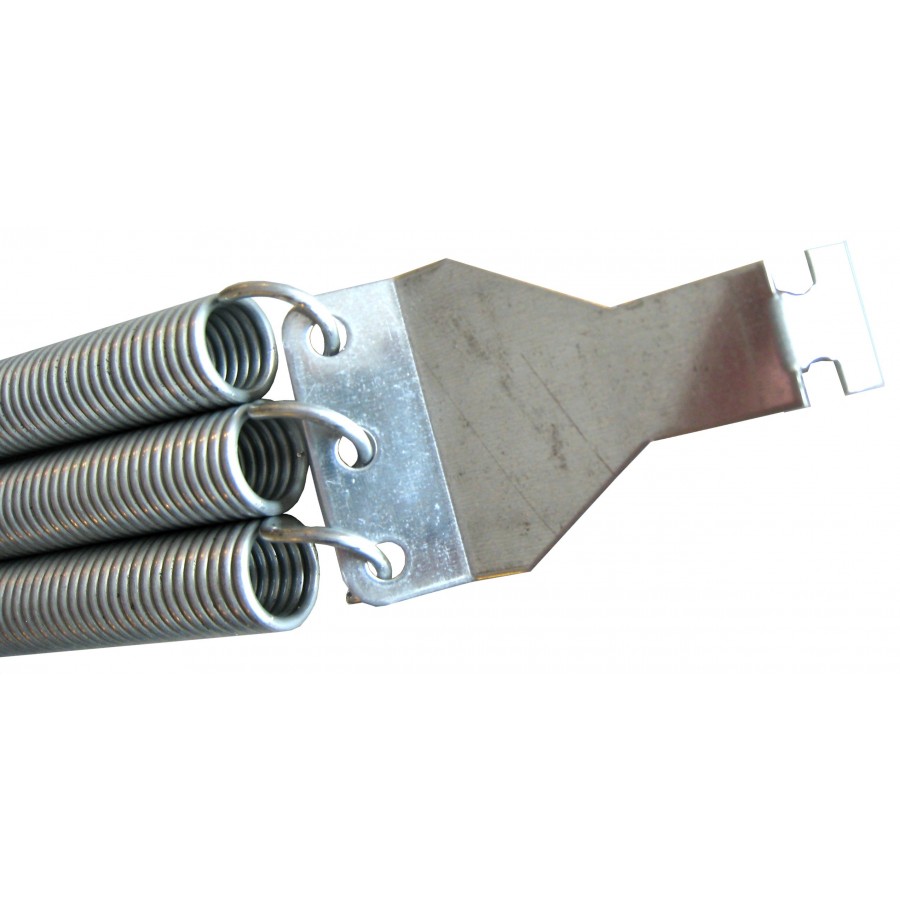

1 triangle acc. springs high with T-connector for hanging Superior strap side
1 triangle acc. low springs with a hole for hanging lower (Useful if you don't have a hook at the bottom of your post. Drill and bolt at the foot of the jamb if necessary).
1 bolt M8
Provision for a non-insulated tilting device
Attention: 1 kit = 1 side

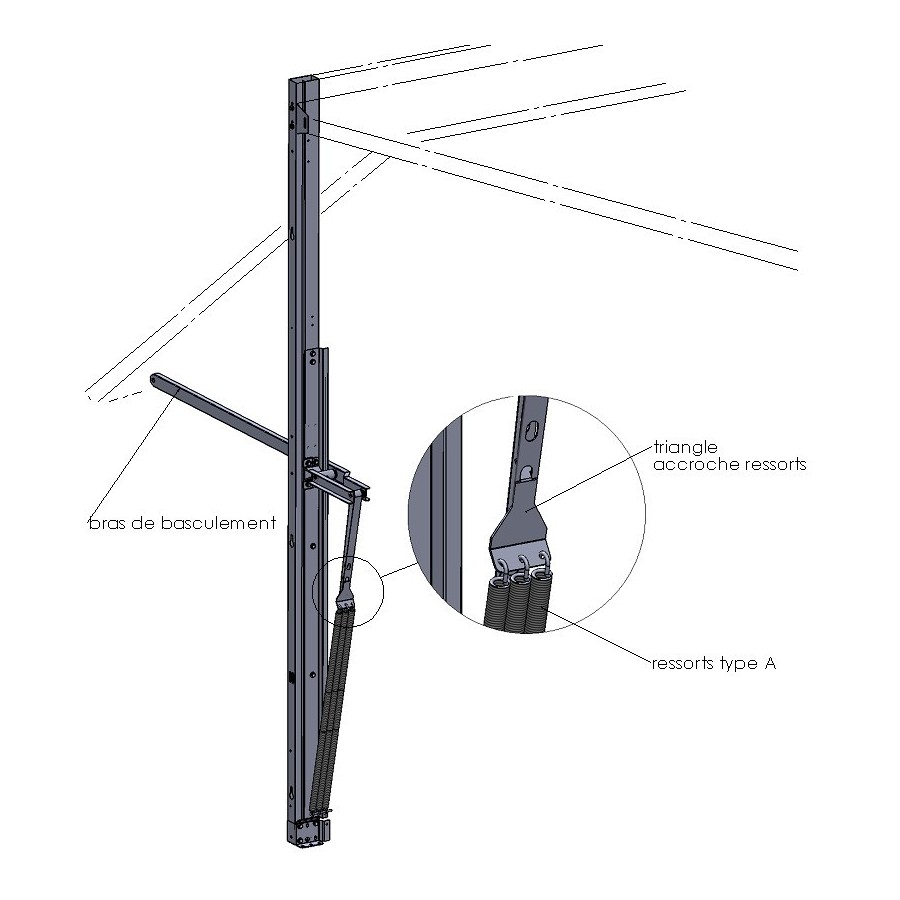

The spring hook triangle fits onto a perforated strap (not supplied) which is itself attached to the tilt arm mechanism.
Generally, this set of 3 springs is designed for non-insulated up-and-over doors of 2400x2000* (a set of 3 springs / side, i.e. 6 in total).
(*indicative values, balancing may vary depending on the type of panels and the design of your door)
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
106 |
|---|---|---|
| 4 |
|
2 |
| 3 |
|
0 |
| 2 |
|
1 |
| 1 |
|
0 |
Attache + ressort pour porte de garage
Prix attractif, acheté en 2017, les attaches sont toujours en place (une a été re-soudée en 2023 car elle avait cassé). J'ai remplacé un ressort en 2025!
Porte de garage basculante
Je suis content car j'ai trouvé sur axone spadone 2 kits de ressorts qui correspondent exactement à ma porte basculante qui a 40 ans! C'est le seul site où la dimension des ressorts était bien précisée.
kit 3 ressorts
livraison a domicile très bien colis bien fait montage sur la porte de garage facile 10 sur 10
Porte de garage Spadone
SAV au top. Livraison rapide. Convient parfaitement.
Kit
Nickel et facile à installer
Cette pièce peut-être compatible avec certaines portes de garage Hörmann, Novoferm, Tubauto, Teckentrup, Mischler, Soprofen,
Up-and-over garage door spring - A-type - 14,40 €
Up-and-over garage door spring - Type A

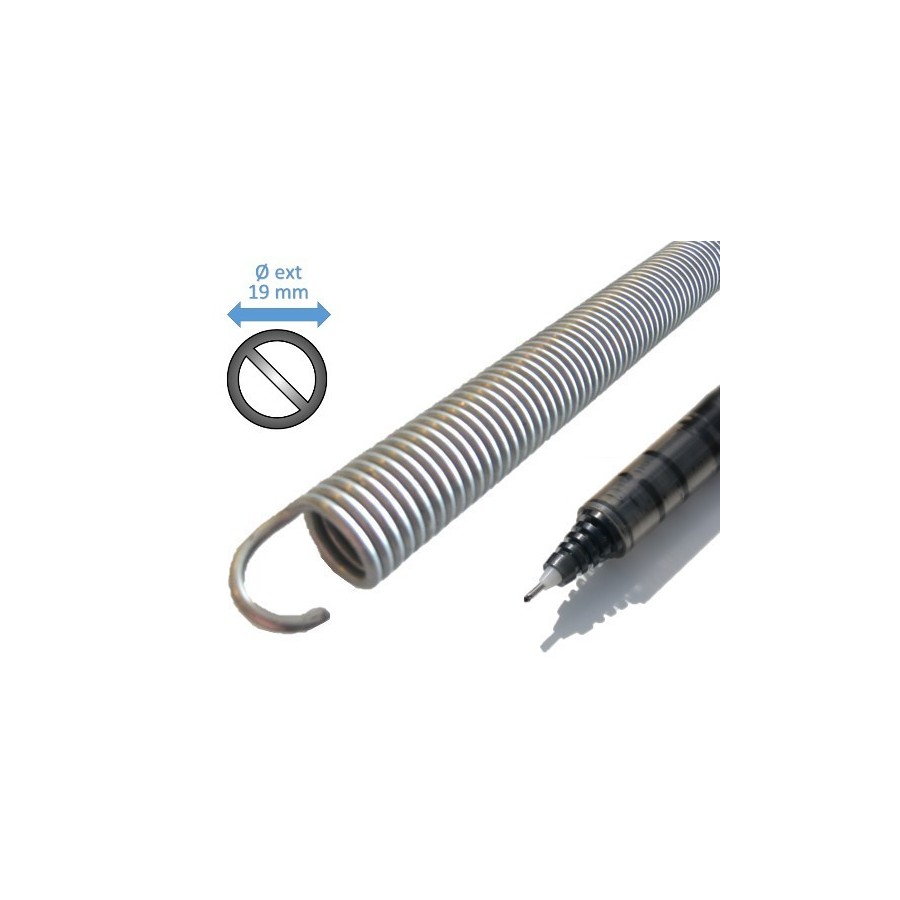

Outer diameter: 19 mm
Length without tension: 355 mm (including loops)
Working length: 700 to 800 mm
Set of up-and-over door springs & 2 hooks - 64,90 €
Multi-spring kit for up-and-over garage door + 2 hooks (the set)
Replaces old "big springs" diameter 4 to 5cm
Refer to the table to find out the number of springs for your door (Indicative values, balancing may vary depending on the design)
Careful, now: (1 kit = 1 side)
Tip: change both sides at the same time to keep your door balanced, i.e. 2 kits.
Strap for tilting arm (pair) - 12,90 €
Steel tensioning strap for manual up-and-over garage door springs.
Allows you to connect the springs attached to the bottom of your door jamb to the door arm axle.
Sold in pairs
In galvanized steel
Width of the strap: 20mm
2 sizes: 6 or 13 holes
(Sold alone, without spring hook)
