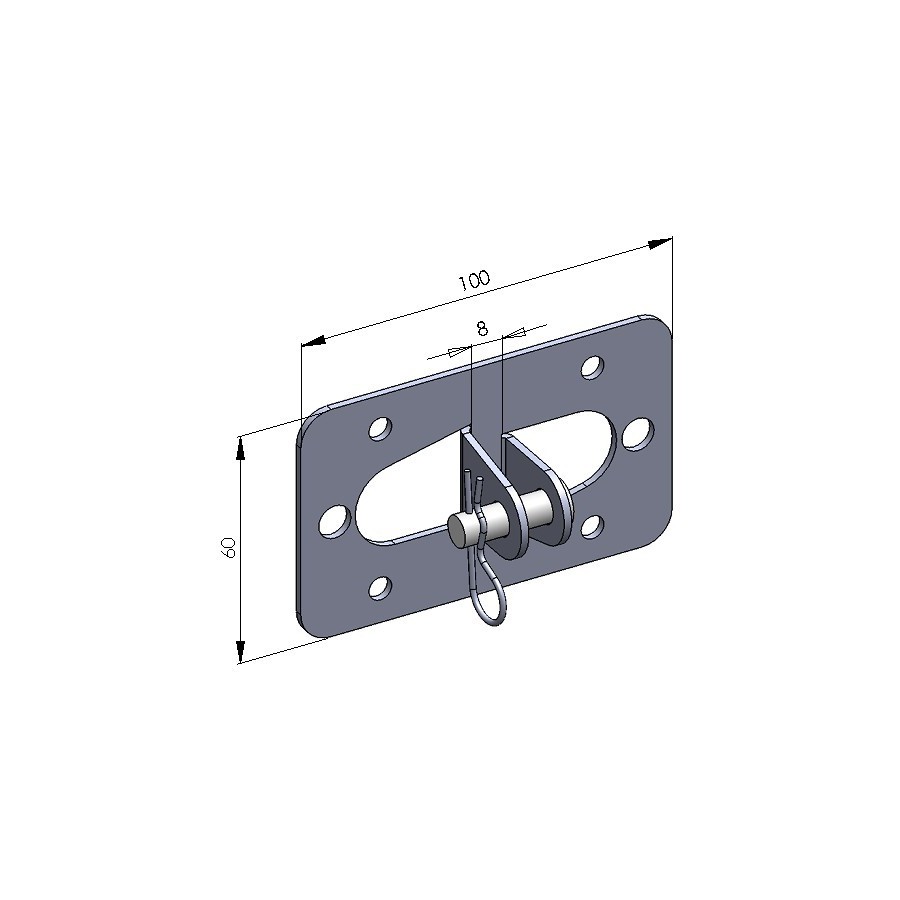

This metal piece is attached to the top panel of your sectional door.
It allows you to attach the angled stock of your engine to it.
This part can also be adapted to other brands of engines, the principle being generally the same.

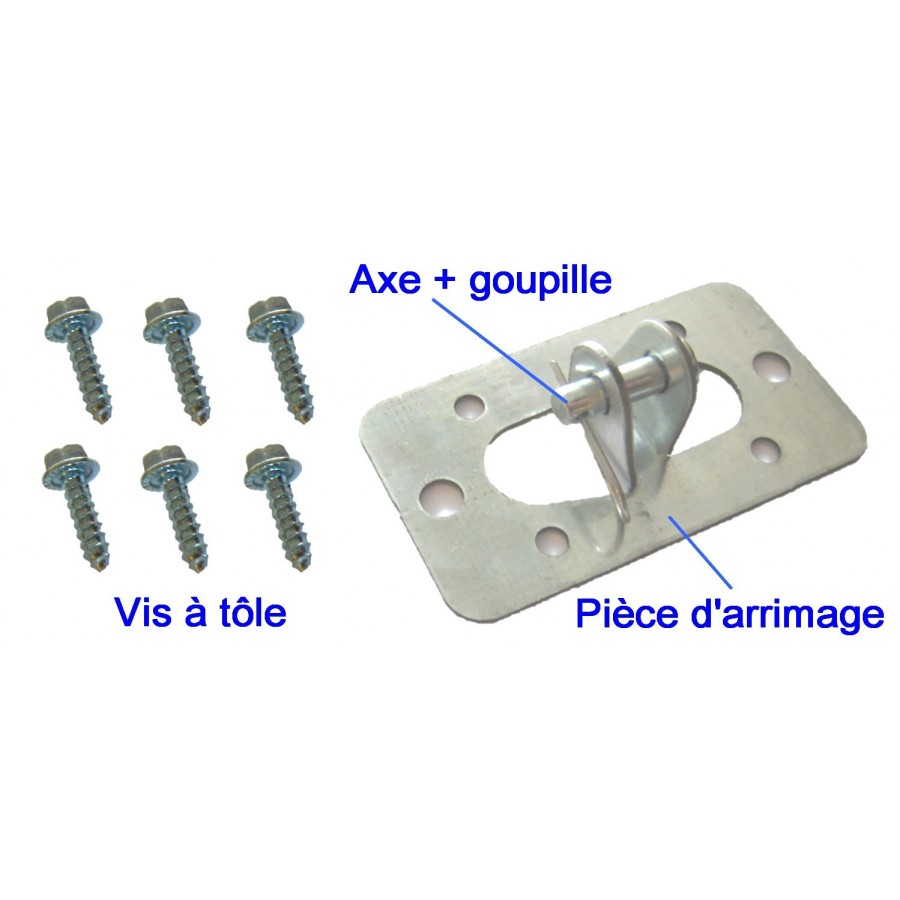

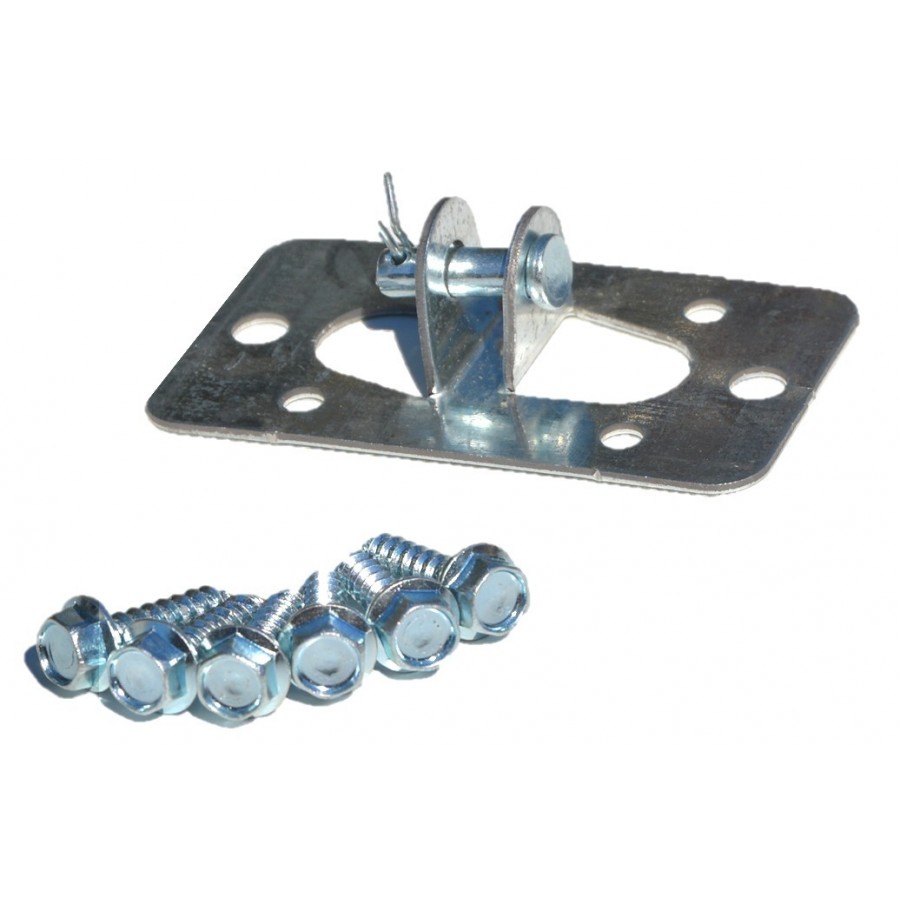

This kit includes :
1 engine stowage ONE
1 axis + 1 pin
6 sheet metal screws 6.3x16

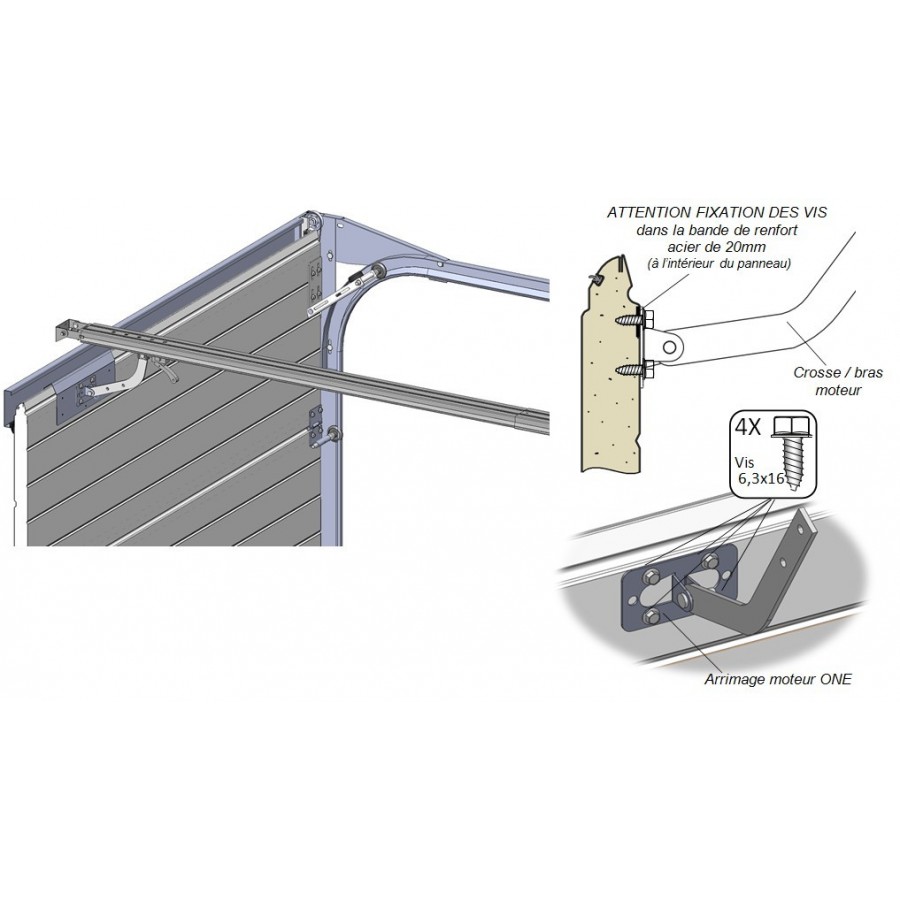

When fixing in your panel, pay attention that at least 2 sheet metal screws are inserted in the steel reinforcement of the panel (on the top of the panel, inside the foam there is according to the manufacturers, a metal reinforcement strip of 20 to 50mm).
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
31 |
|---|---|---|
| 4 |
|
1 |
| 3 |
|
1 |
| 2 |
|
0 |
| 1 |
|
1 |
Arrimage porte pour moteur
Impeccable Merci
Motorisation porte sectionnelle
Cette pièce était manquante suite à l’achat d’occasion dune motorisation de porte. J’ai été sauvé car il est difficile de trouver des pièces détachées !! Merci, transaction parfaite.
porte de garage sectionnelle
parfait
Arrimage Porte / Moteur ONE
Parfait. Pièce commandée le soir sur internet, mise à disposition le lendemain matin , à l'usine, à l'ouverture. Bon accueil et comble du comble nous habitons à 10 km de l'usine, sans le savoir!. La pièce est parfaite, les dimensions et l'emplacement des trous sont exactement les mêmes et la porte est de nouveau opérationnelle. Top.
Porte Spadone 190 de 1998
Non utilisée car la réparation par vis. sur la porte d'origine a été possible
ONE X garage door operator - 239,40 €
ONE X motorization for sectional and tilting garage doors up to 12m², with integrated LED lighting, obstacle detection and optional smartphone connectivity.
Comes complete with:
1 ONE motor head with 140cm electric cable
2 ONE transmitters
1 chain rail
1 ceiling mounting kit
1 connecting arm for sectional door and 1 connecting arm for tilting door
Motor docking plate for sectional motor - 11,90 €
The tie-down plate attaches to the top of the sectional garage door panel and receives the motor bracket.
Its shape allows the consolidation of the panel profiles so that the panel does not risk to deteriorate (tearing).
This plate is pre-drilled to receive the engine ONE or ML510 Chamberlain tie-downs (sold separately).
To be fixed with 4 rivets (supplied)
Angled motor-door connecting arm for sectional doors - 12,00 €
This steel link arm connects the top panel of your sectional garage door with the motor carriage.
Fastening with the pins (not supplied) on the carriage and the motor lashings.
Material: steel, thickness 5mm
