Cables for EURONORM CT up-and-over doors up to 2.4m height
2 Steel cables Ø3mm , L3m with loops
2 Acc. Perforated cable Tilting EURONORM
4 anti-friction PVC washers
Supplied with 2 additional seals (if cable cut for intermediate sizes)
This cable system replaces the old system and allows you to adjust the tension of the springs.
Working in safety, door open and locked (clamp) and spring relaxed

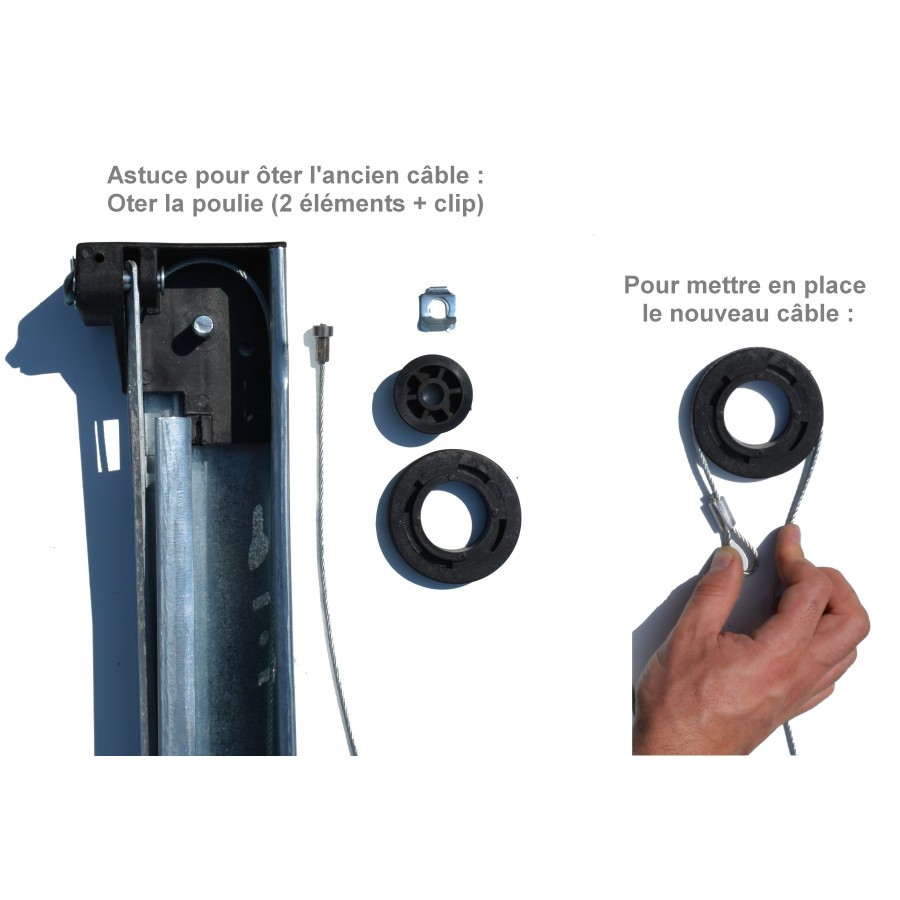

Remove the old rope starting with the high pulley.
- Remove the clip
- Remove the 2 elements of the PVC pulley to unhook the T-lead.
- Remove the cable on the side of the movable pulley/spring.
Pull it roller out of its vertical rail.

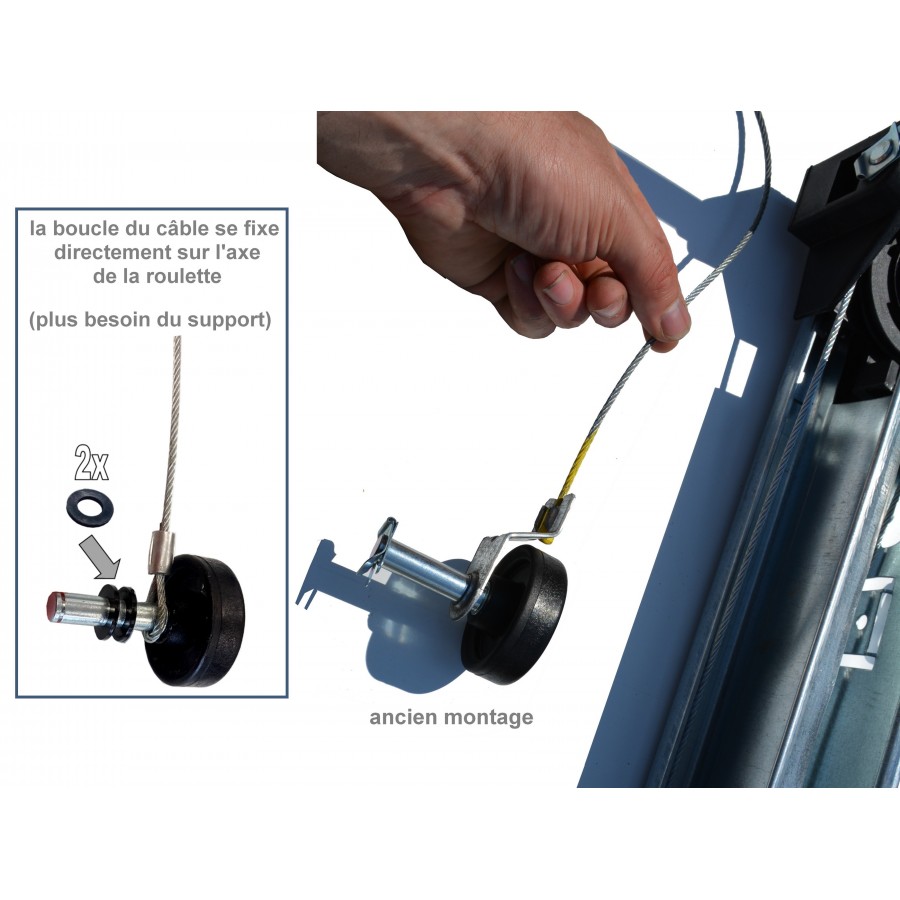

Remove it roller from the apron by removing the clip to remove the cable support from its axis.
Pass the buckle on the axis of the roller and replace it in the apron, put the clip back on.
Pass the cable from the loop to the roller upper pulley and down to the mobile pulley on the spring side and then back to the perforated cable hanger to make the adjustable knot.
Do the same on both sides

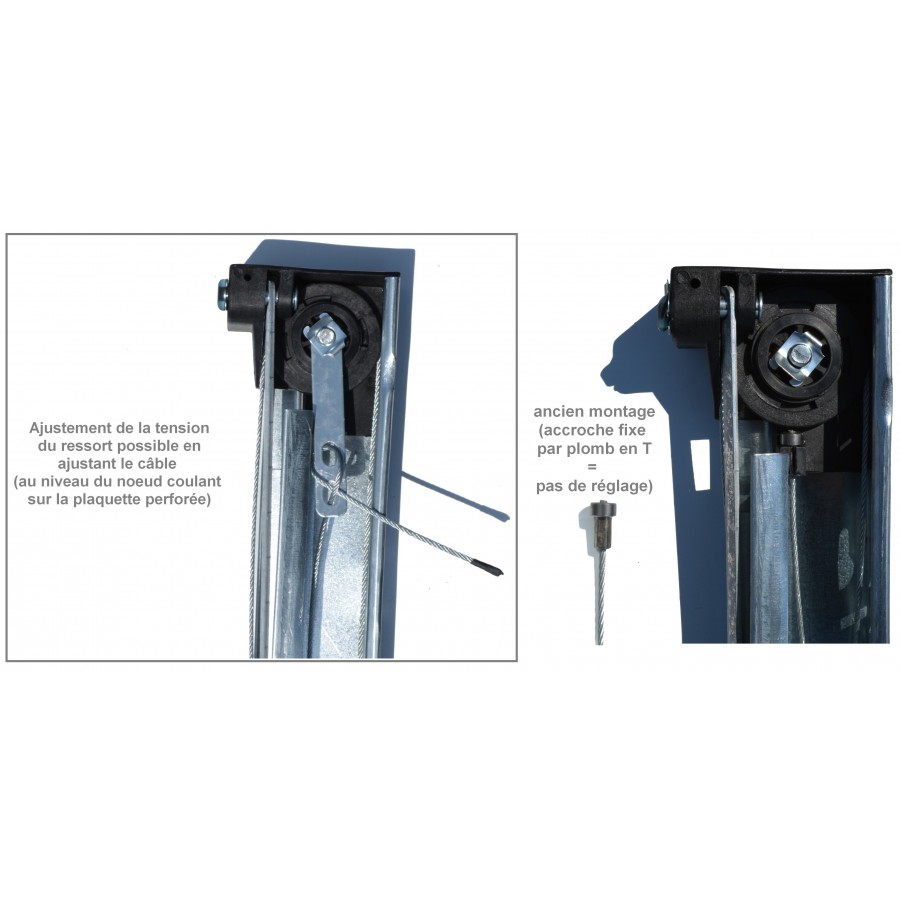

Test manually (with care) and adjust the spring tension on the cables if necessary to ensure that the door is well balanced.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order demainbefore 1pm and receive your parcel on Saturday 2 May (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 |
|
16 |
|---|---|---|
| 4 |
|
0 |
| 3 |
|
0 |
| 2 |
|
0 |
| 1 |
|
0 |
Porte de garage Euronorm
Kit de réparation bien utile pour le remplacement des câbles.
Porte basculante Euronorm de 1989
Le nouveau système s'est bien adapté à mon vieux portail Euronorm de 1989. Je vous conseille d'acheter des serres câbles en plus.
Câbles de porte de garage basculante
Bonjour Je n'ai pas pu poser ces câbles car trop longs et si je les avais raccourcis je n'avais plus l'arrêt d'embout!
Porte Euronorm
Correspond au besoin, sav à l'écoute du client, livraison rapide. Il manque un peu d'explications concernant le démontage pour les nons bricoleurs.
Basculante Euronorm contrapp. a molla
Sostituzione cavi d'acciaio
Lock case 1 point Wicket door EURONORM CT - 39,90 €
Lock box with 1-point locking, used in particular for the gate of the EURONORM CT tilting garage door
Square size 8 x 8 mm Designed to accommodate a European cylinder
This lock box is reversible. Simply push the bolt all the way in and turn it halfway.
Mobile Pulley PVC EURONORM CT Diameter 45 mm single groove + bracket - 8,40 €
PVC mobile pulley delivered assembled with its steel support (the whole) Pulley diameter 45mm Designed to hook onto the buckle of the large spring (not supplied) of EURONORM CT doors.
Fixed PVC Pulley EURONORM Ø75 mm + clip (pair) - 19,20 €
Outer pulley diameter 75mm
Pulley composed of an external pulley in PVC + 1 central core + 1 clip
Suitable for EURONORM CT and DT doors
Sold per pair
